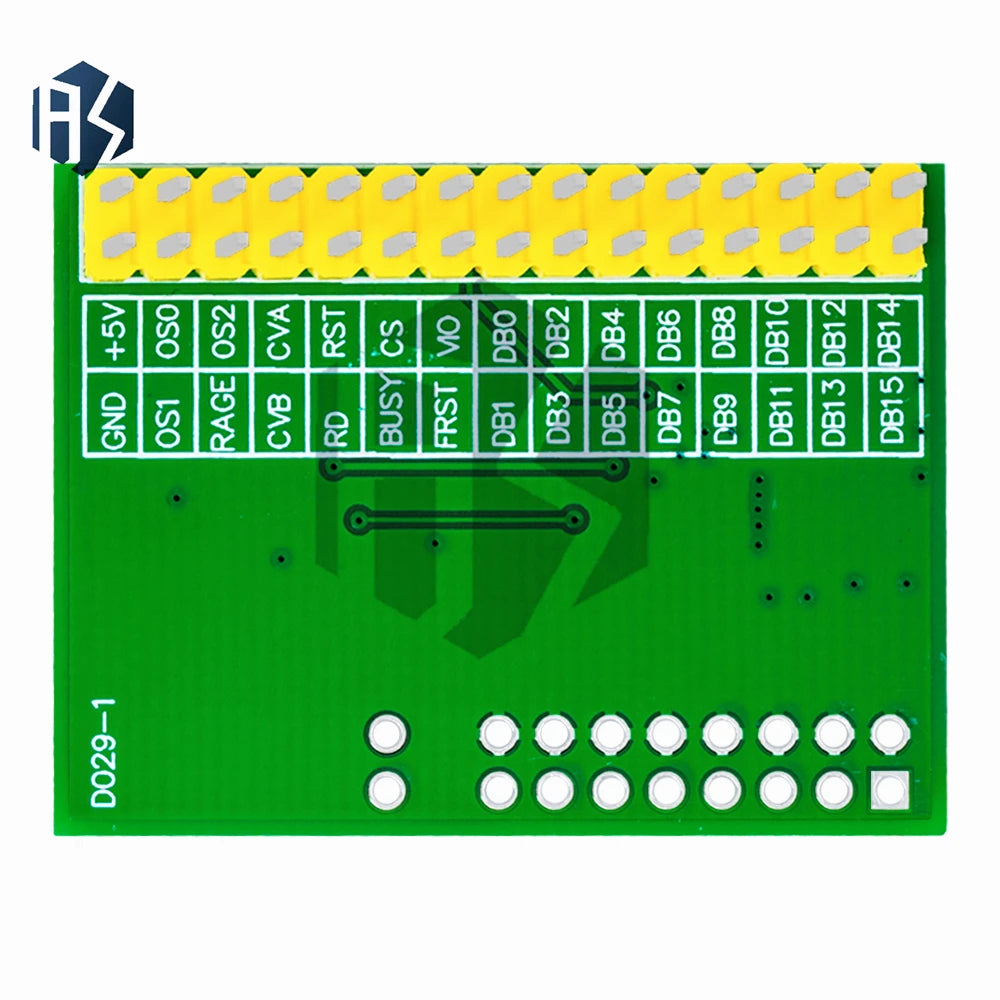

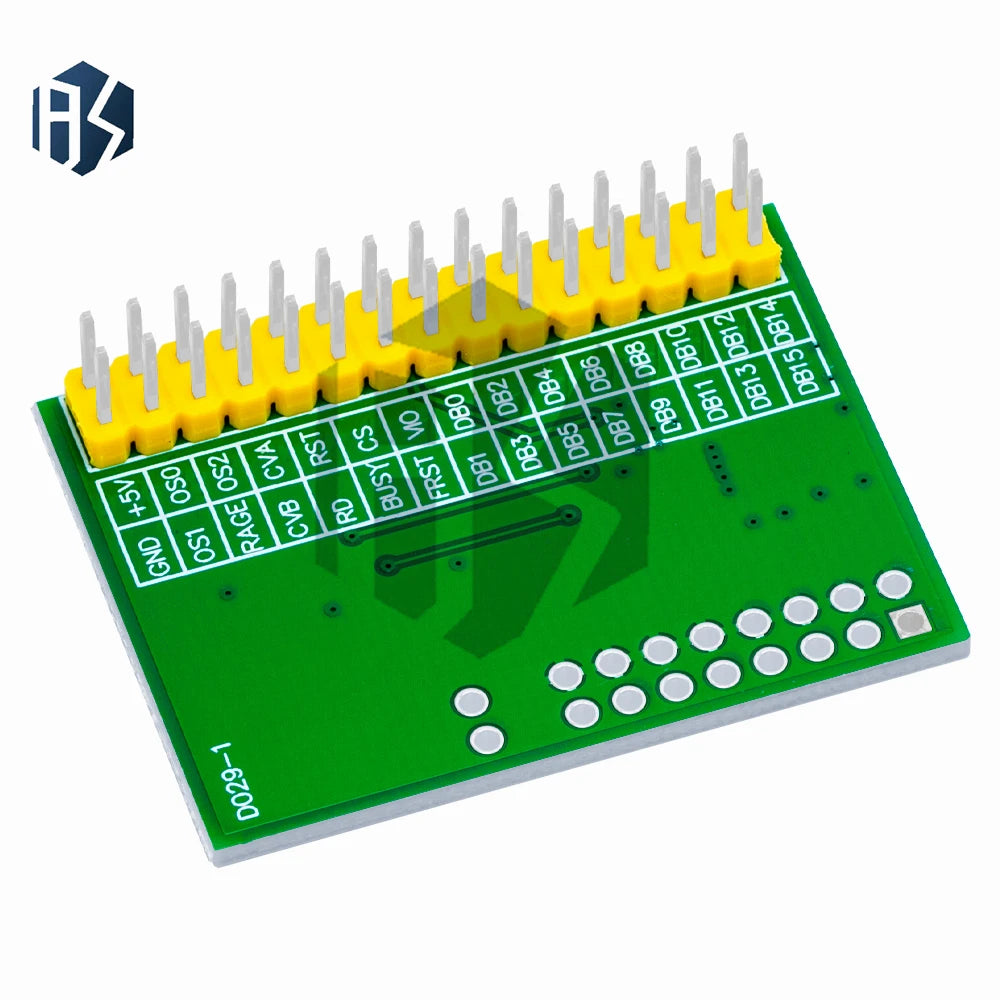

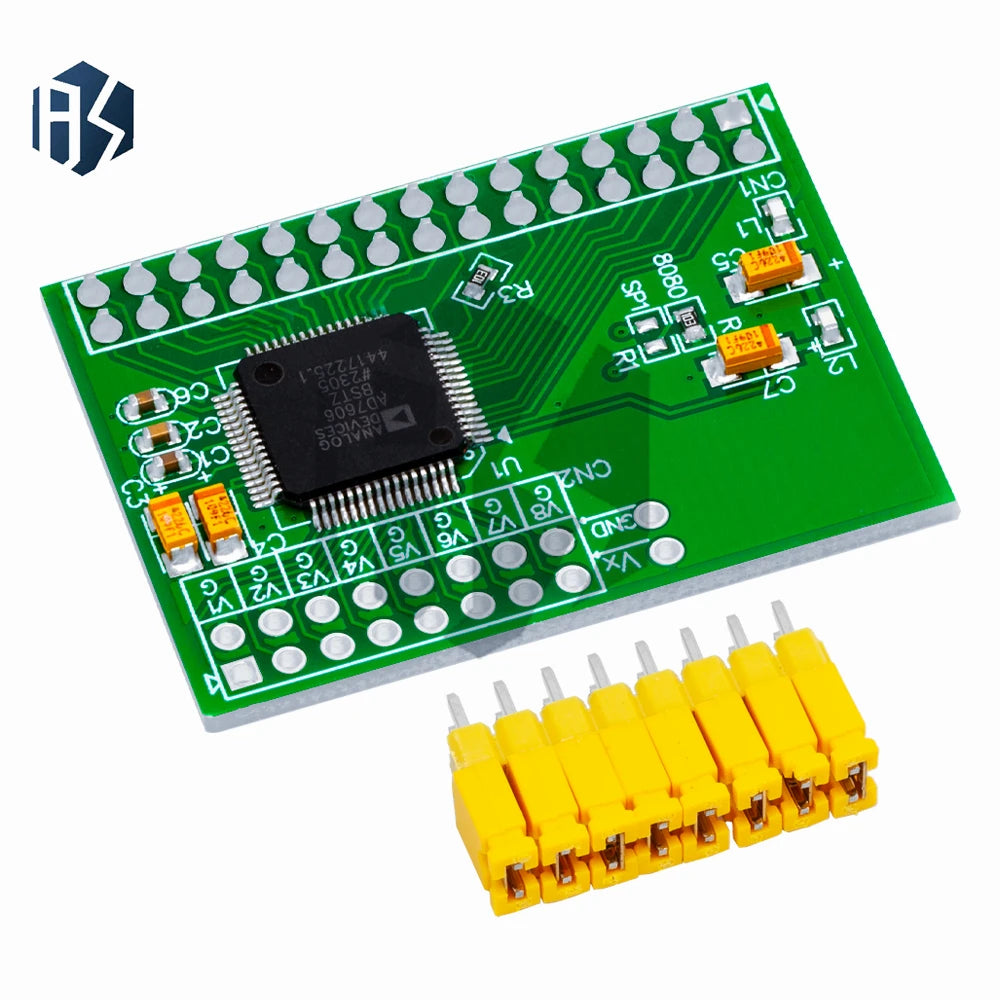

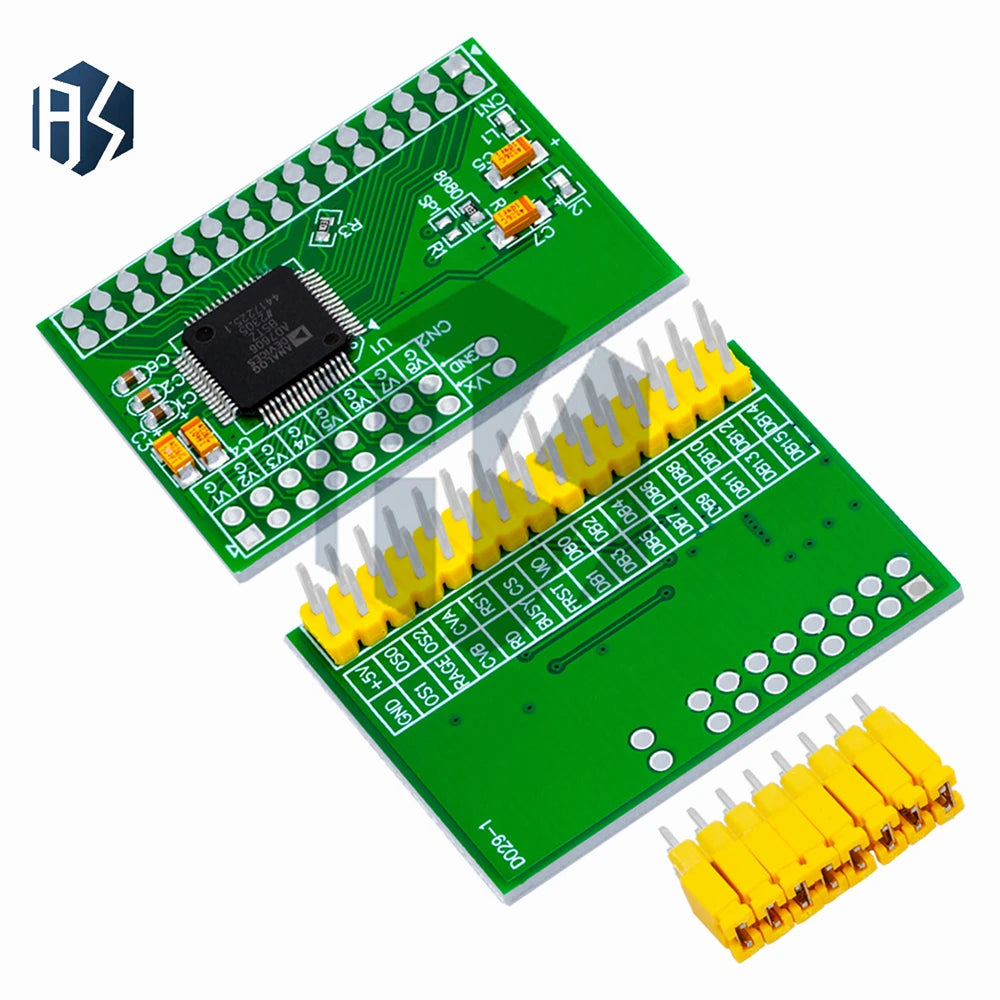

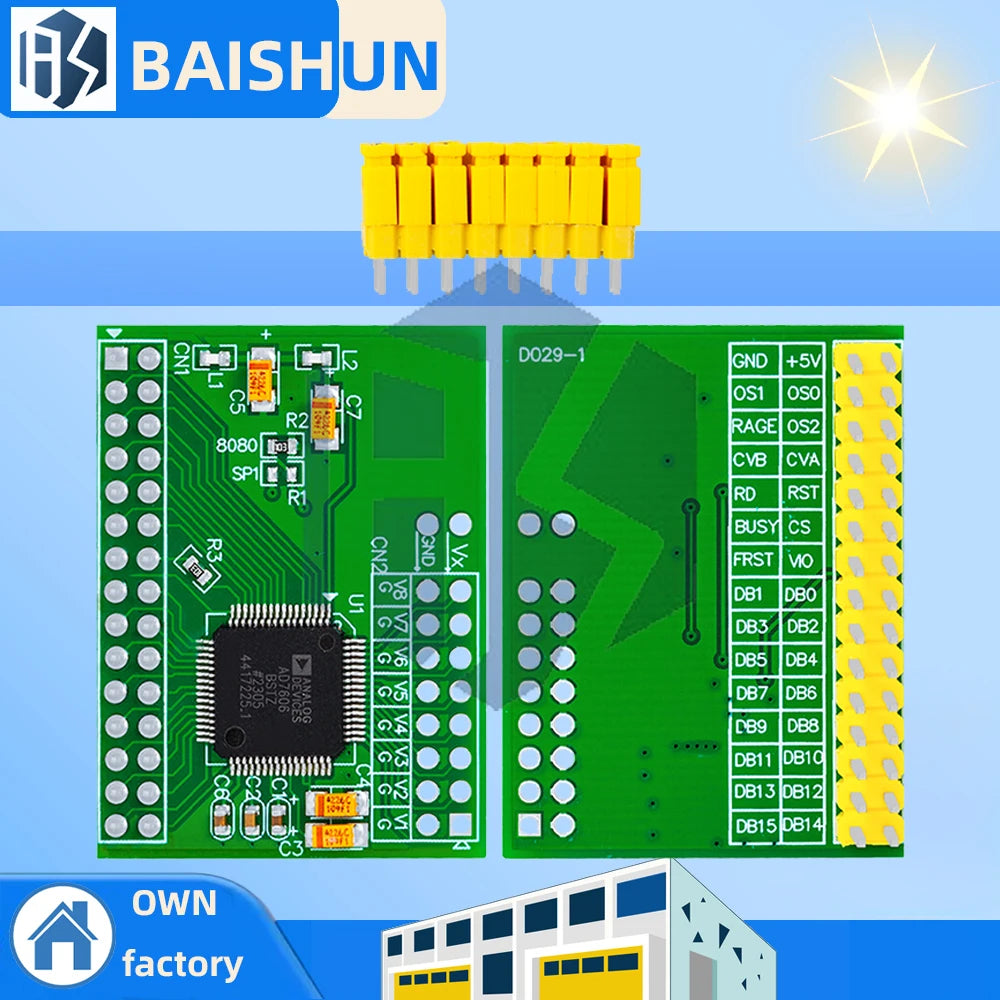

AD7606 16-Bit ADC Module – 8-Channel Synchronous Sampling at 200kHz

Take your data acquisition projects to the next level with the AD7606 16-Bit ADC Module. Featuring 8 fully simultaneous input channels and a blazing 200kHz sampling rate, this module delivers high-resolution, low-noise analog-to-digital conversion for embedded systems, signal processing, industrial monitoring, and microcontroller-based designs. Whether you're building a precision measurement instrument or integrating multi-channel sensing into your next project, this ADC module offers the performance and reliability you need.

Key Features

16-Bit Resolution – Captures fine signal details with exceptional accuracy across all channels
8 Synchronous Input Channels – All channels sampled simultaneously, eliminating phase errors between signals
200kHz Sampling Rate – High-speed acquisition suitable for dynamic and fast-changing signals
Wide Input Voltage Range – Supports ±10V and ±5V bipolar input ranges for versatile signal compatibility
SPI / Parallel Interface Support – Easy integration with microcontrollers, FPGAs, and DSPs
Built-in Oversampling Filter – Reduces noise and improves SNR without external components
SMD Components Included – Each order ships with SMD components for a complete, ready-to-use module

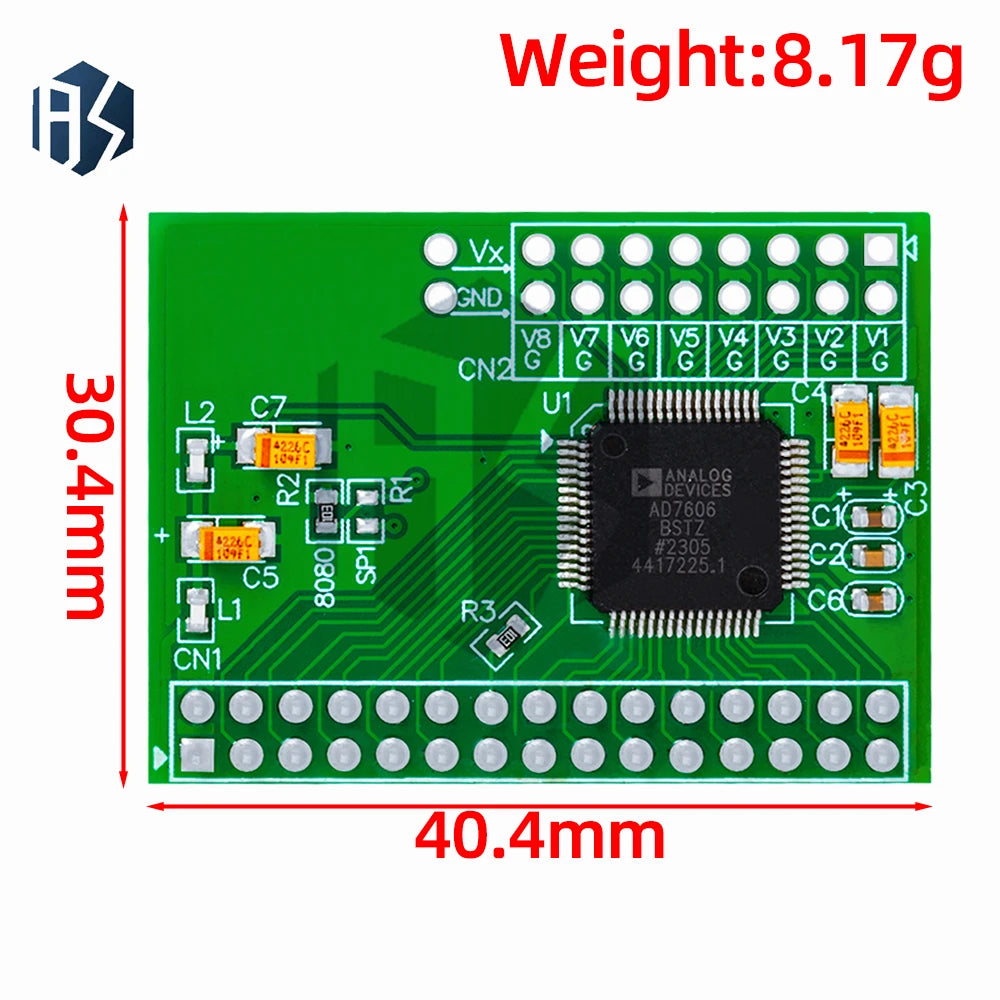

Compact PCB Design – Space-efficient form factor ideal for embedded and lab applications

Ideal Applications

Industrial signal monitoring and control systems
Multi-channel sensor data logging
Vibration and motion analysis
Power quality measurement
FPGA / MCU / DSP development boards
Research, prototyping, and lab instrumentation

What's in the Box

1 × AD7606 16-Bit ADC Module (SMD assembled)

Related Products You May Like

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What is the AD7606 16-Bit ADC Module and what does it do?

A: The AD7606 is a high-performance analog-to-digital converter (ADC) module featuring 8 fully synchronous input channels and 16-bit resolution with a 200kHz sampling rate. It converts analog voltage signals into precise digital data, making it ideal for embedded systems, FPGA development, industrial sensing, and multi-channel data acquisition projects.

Q: What interfaces does the AD7606 ADC module support?

A: The AD7606 module supports both SPI (serial) and parallel digital interface modes, giving it broad compatibility with a wide range of microcontrollers, FPGAs, DSPs, and development platforms. The interface mode can be selected via pin configuration on the board.

Q: What input voltage ranges are supported by this 8-channel ADC module?

A: This module supports selectable bipolar input voltage ranges of ±10V and ±5V across all 8 channels, making it suitable for a wide variety of sensor outputs and signal sources commonly used in industrial and research environments.

Q: Does the AD7606 module come pre-assembled with SMD components?

A: Yes. Each order includes the AD7606 ADC module fully assembled with SMD (surface-mount device) components, so it is ready for integration into your circuit or development setup right away.
