433MHz Garage Gate Remote Control Duplicator – 4-Button Cloner

433MHz Wireless Remote Control Duplicator for Garage Doors & Gates

Upgrade your home or business access with this versatile 433MHz Copy Remote Control. Designed to clone fixed-code and compatible learn-code remotes, this compact duplicator works seamlessly with electric gates, telescopic doors, garage doors, road barriers, and alarm systems — all at the press of a button.

Key Features

• Wide Compatibility: Clones a broad range of fixed-code chips including PT2262, EV1527, HT12D, PIC16F629, and many more (see full chip list below)
• 4-Button Design: Copy up to 4 different remote channels onto a single device
• Long Wireless Range: Up to 50–150 metres in open space
• Easy Code Management: Clear, copy, and restore codes with simple button combinations — LED indicator confirms every step
• Compact & Durable: Slim plastic housing (60×36×12mm / approx. 7×5×2cm) fits easily on a keyring or in a pocket
• Powered by 12V Battery: Battery included

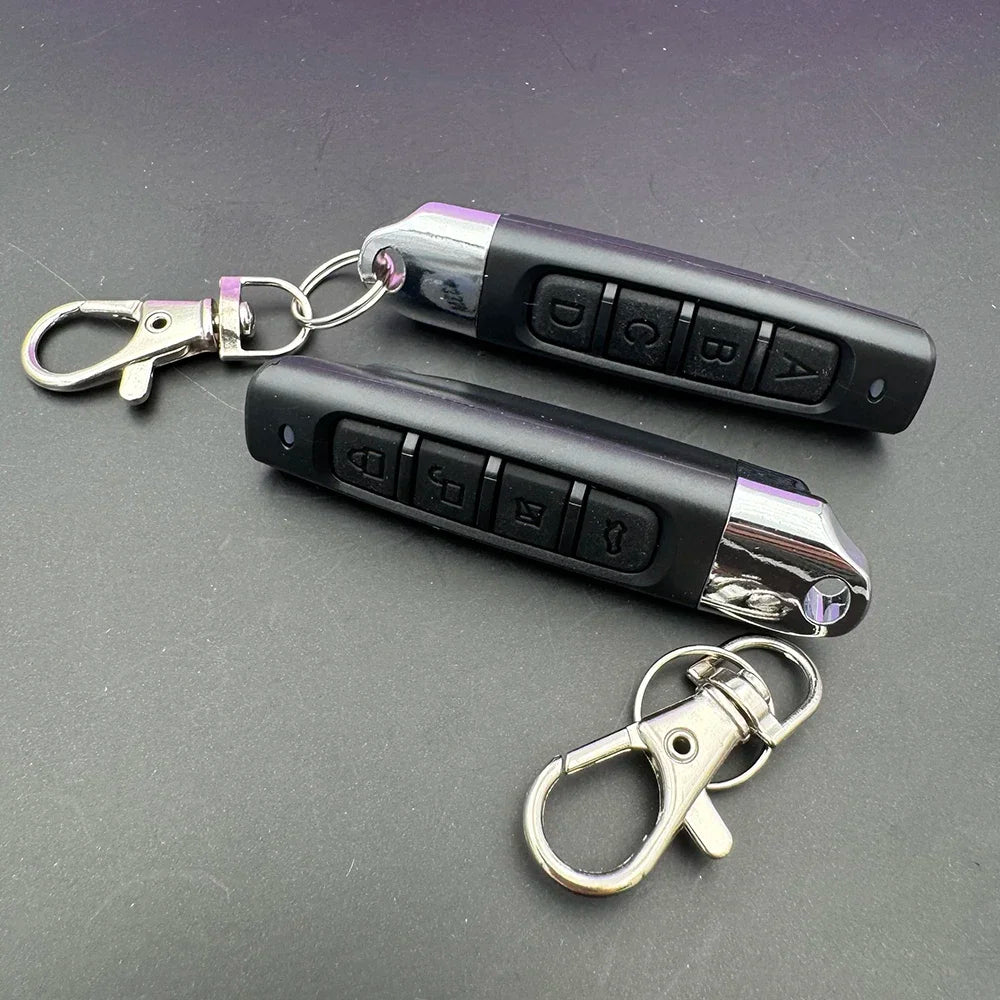

• 2 Style Options: Available in ABCD Black and Shape Black

What Can It Copy?

This duplicator supports fixed-code and learn-code chips, including:

2260 (PT2260, SC2260, LX2260, HX2260) · 2262 (PT2262, SC2262, LX2262, HS2262, HX2262) · PT2264 · PT2240 (LX2240) · 1527 (EV1527, HS1527, HX1527) · FP527 · CS5211 · SMC918 · SMC926 · AX5026 · AX5326-3 · AX5326-4 · HT600 · HT680 · HT6207 · HT6010 · HT6012 · HT6013 · HT6014 · HT12D · HT46F49E · PIC16F629 · PIC16F630 and more.

Note: This device copies fixed-code remotes. Two-way, rolling-code, and single-chip encryption remotes (e.g. HCS200, HCS300, HCS301) cannot be copied. We do not recommend attempting to copy rolling-code remotes due to the unpredictable nature of encryption chip detection.

Compatible Applications

• Electric sliding and telescopic gate remotes
• Garage door openers
• Road barrier / boom gate remotes
• Alarm system remotes

How to Use

Step 1 — Clear the Remote

Hold the Unlock and Lock keys simultaneously. The LED flashes 3 times rapidly (~2 sec). Release one finger, then quickly press the released button 3 times until the LED flashes rapidly. Release both fingers, then press any key — when the LED turns off, the code has been cleared successfully.

Step 2 — Copy a Channel

Hold the original remote and the duplicator close together. Press the matching buttons on both remotes simultaneously. After ~2 seconds the LED flashes twice, then keeps flashing — release your fingers. Press the button again; if the LED stays on, that channel has been successfully cloned. Repeat for each additional button.

Step 3 — Restore Saved Codes

If you accidentally clear the duplicator, press the two bottom keys simultaneously until the LED flashes rapidly, then release and press any key. A steady light confirms the code has been restored.

Specifications

You May Also Like

• Natural Hawk's Eye Stone Beads for DIY Jewelry Making
• Round Aluminum Wire 1mm–3mm for DIY Jewelry Making

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: What types of remote controls can this 433MHz duplicator copy?

A: This duplicator is designed to copy fixed-code and compatible learn-code remotes operating at 433MHz. It supports a wide range of chips including PT2262, EV1527, HT12D, PIC16F629, and many others. It cannot copy two-way, rolling-code (e.g. HCS300/HCS301), or single-chip encryption remotes.

Q: Does the 433MHz remote duplicator come with a battery?

A: Yes — a 12V battery is included, so you can set it up right away without needing to purchase additional accessories.

Q: How many buttons or channels can I copy onto this remote duplicator?

A: The duplicator features 4 buttons, allowing you to clone up to 4 separate remote channels — ideal if you have multiple access points such as a garage door, front gate, and barrier all on one device.

Q: What should I do if a copied button stops working?

A: Use the built-in clear and restore process: clear all codes, re-copy the problematic button, clear again, then restore. This overwrites the failed code while retaining any successfully copied channels. Detailed step-by-step instructions are included above.
