433MHz ASK OOK RF Wireless Transceiver Module – SYN115 & SYN480R Chipset

Build reliable short-range wireless communication into your next electronics project with this compact 433MHz ASK/OOK RF Transceiver Module. Featuring the proven SYN115 transmitter and SYN480R receiver chipsets, this module delivers stable one-way RF data links at 433MHz — perfect for hobbyists, makers, and engineers working on remote control systems, home automation, IoT prototyping, and microcontroller-based wireless setups.

With a tiny PCB footprint of just 15mm × 11.8mm, an SMD package, and a low operating voltage of 1.8V–3.6V, this module is easy to integrate into space-constrained designs. Available individually or in multi-packs of 5, you can stock up for larger builds or pick up a single set to get started fast.

Key Features

• Frequency: 433MHz ASK/OOK modulation

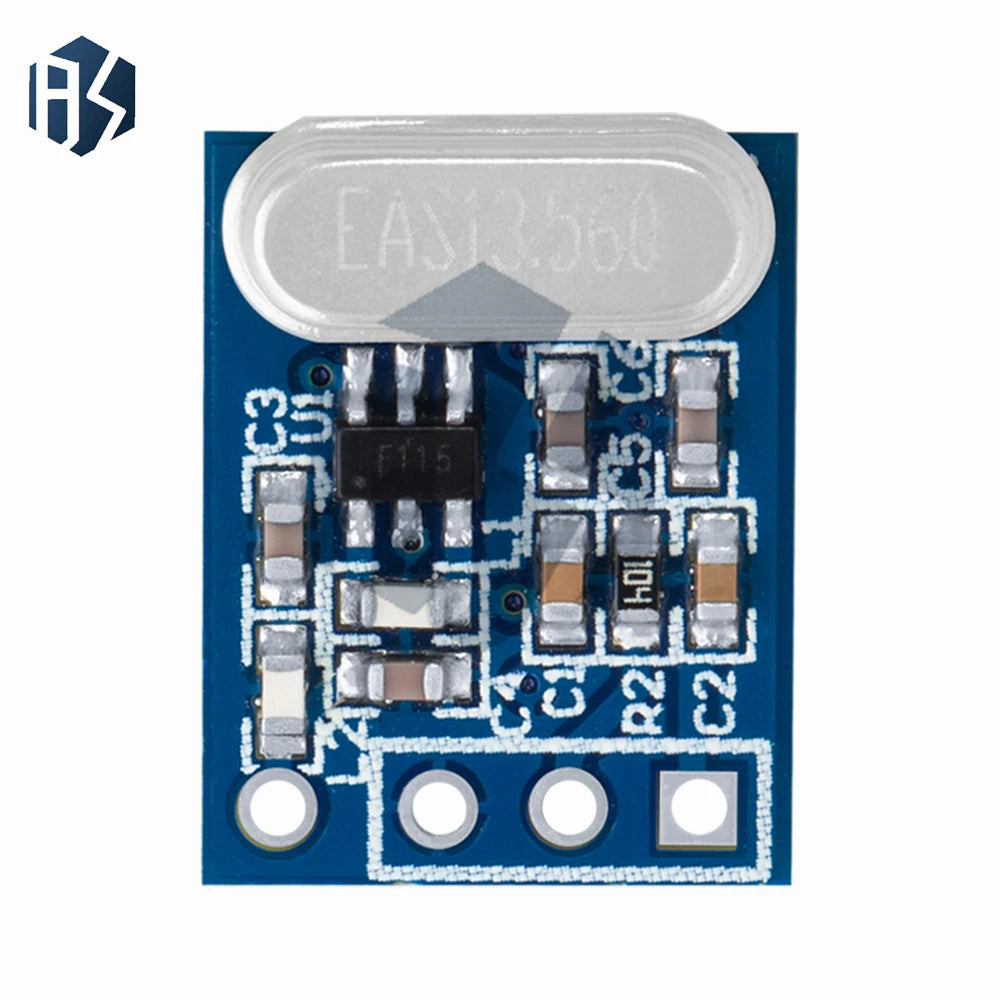

• Chipset: SYN115 (transmitter) + SYN480R (receiver)
• Supply Voltage: 1.8V – 3.6V

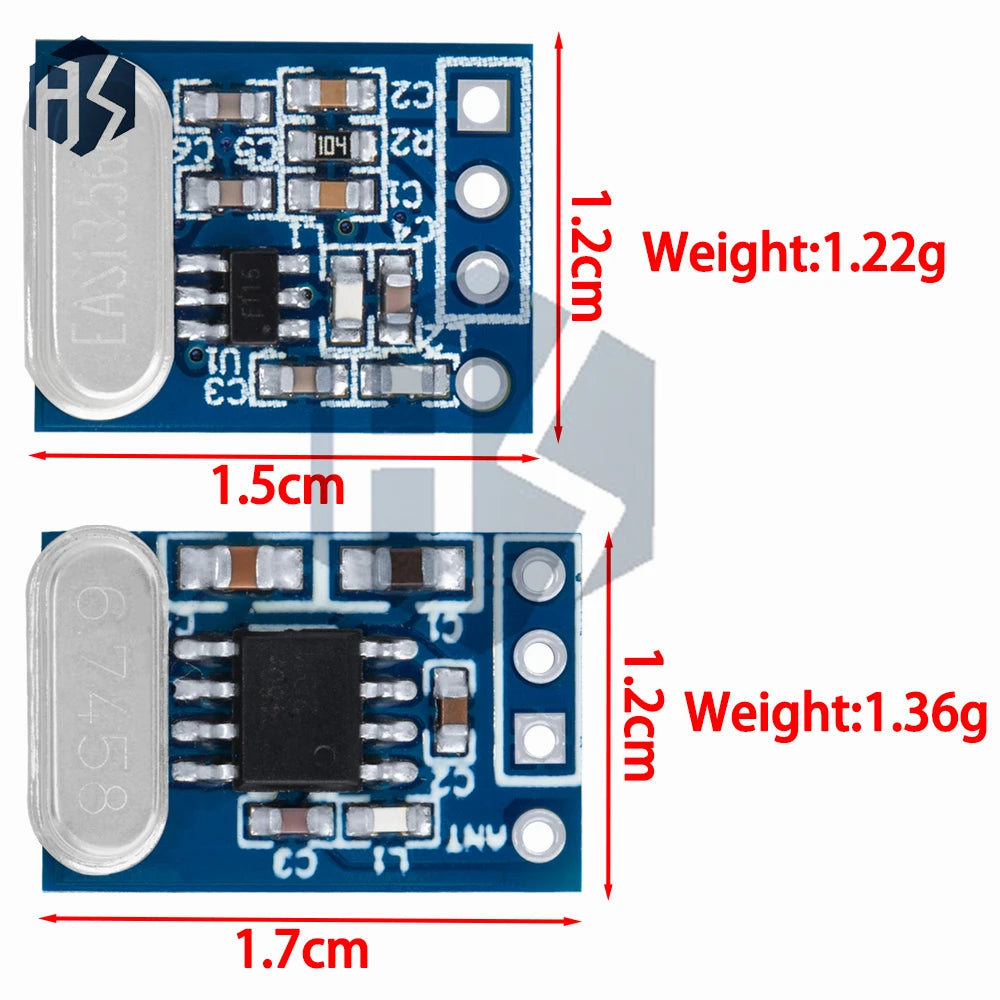

• PCB Size: 15mm × 11.8mm (compact SMD form factor)
• Package Type: SMD
• Condition: Brand new
• Customizable: Yes — suitable for custom PCB integration
• Applications: IoT, microcontrollers, remote control, home automation, wireless sensor nodes

Available Options

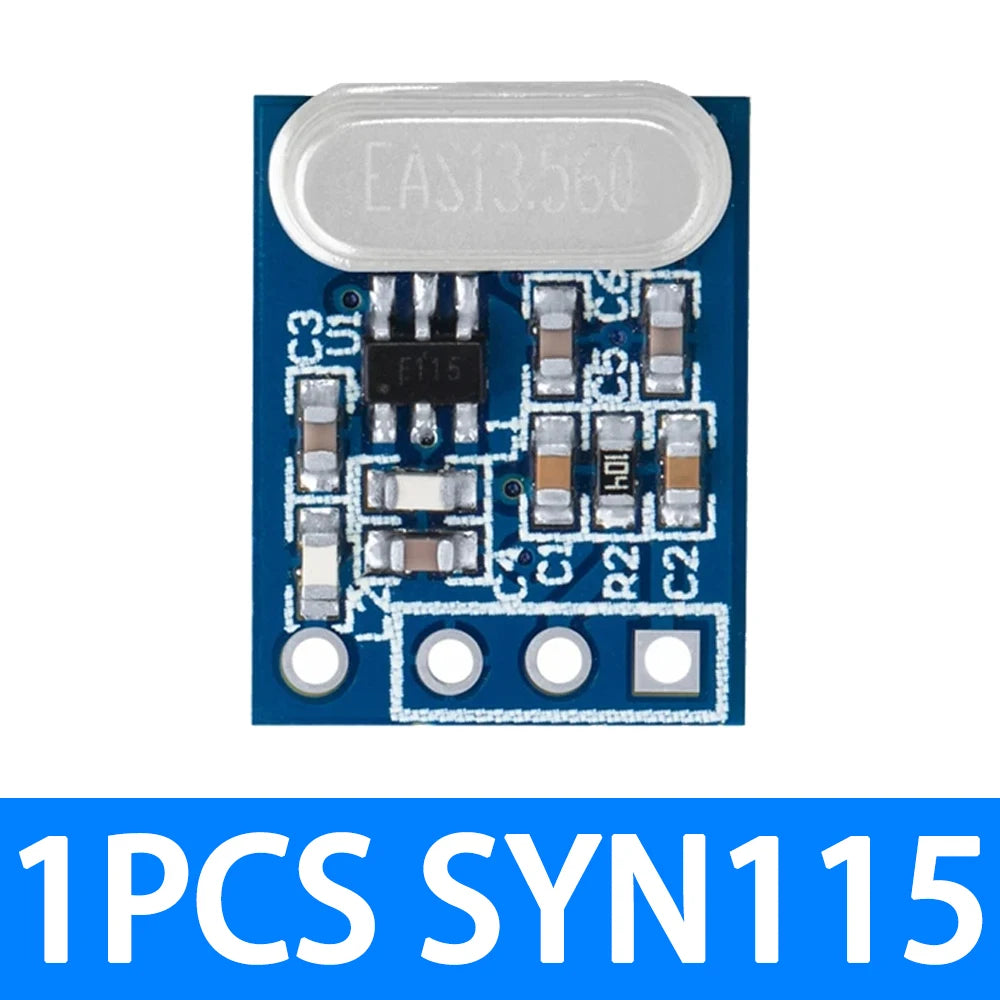

• 1PCS SYN115 (transmitter only)
• 1PCS SYN480R (receiver only)

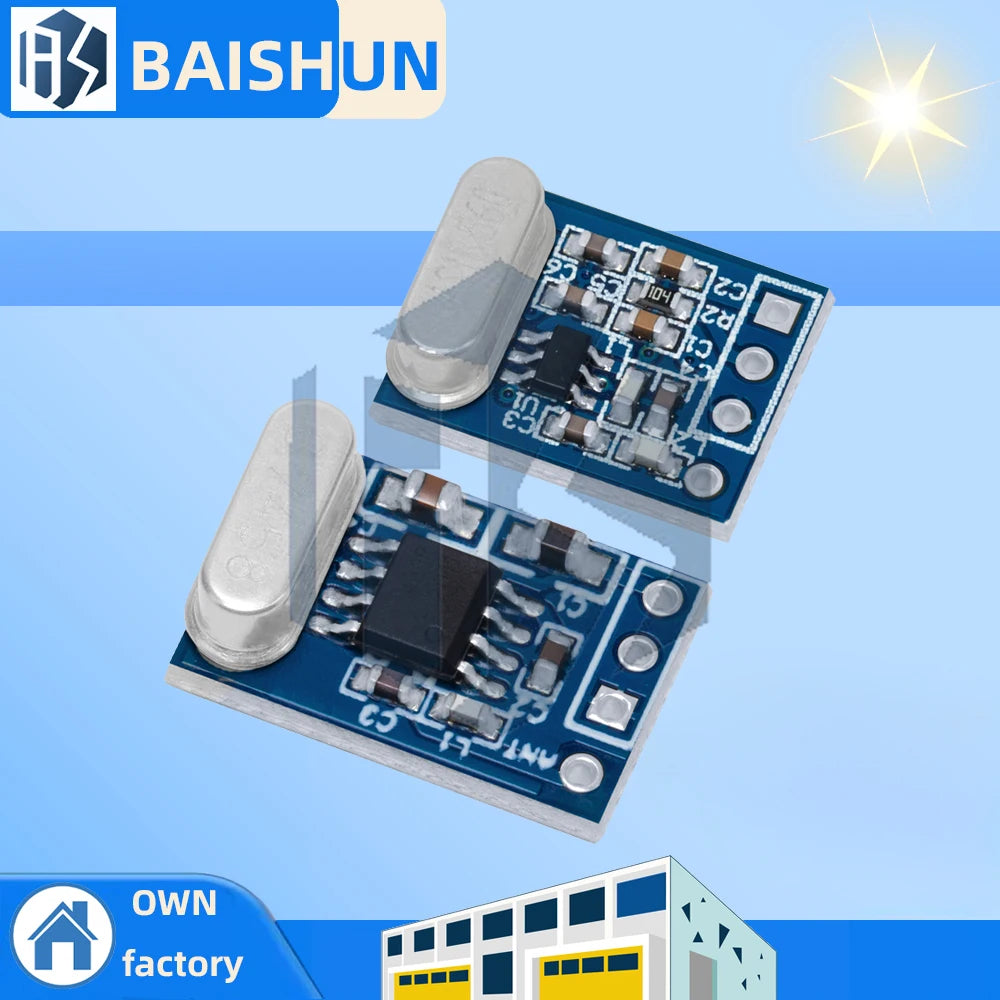

• 1PCS Full Set (1× SYN115 + 1× SYN480R)
• 5PCS SYN115
• 5PCS SYN480R
• 5PCS Full Set (5× SYN115 + 5× SYN480R)

Why Choose This RF Module?

The SYN115/SYN480R pairing is a well-established solution in the maker and embedded-electronics community. The 433MHz band offers excellent range-to-power efficiency for low-data-rate wireless tasks, and the ASK/OOK modulation keeps implementation straightforward — ideal whether you're working with an Arduino, ESP8266, STM32, or any other development platform.

Looking for complementary components for your DIY electronics projects? Browse our Round Aluminum Wire for DIY Projects or explore our full range of crafting and making supplies like CCB Flat Round Spacer Beads for DIY Making.

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What is the difference between the SYN115 and SYN480R chips in this 433MHz RF module?

A: The SYN115 is the transmitter IC — it modulates and transmits data at 433MHz using ASK/OOK encoding. The SYN480R is the corresponding receiver IC that demodulates the incoming 433MHz ASK/OOK signal. Together they form a complete one-way RF wireless link. You can purchase them individually or as a matched set.

Q: What supply voltage does this 433MHz RF transceiver module require?

A: This module operates on a supply voltage of 1.8V to 3.6V, making it compatible with 3.3V microcontrollers and development boards such as Arduino (with a voltage divider), ESP8266, ESP32, and STM32 platforms right out of the box.

Q: What are typical use cases for a 433MHz ASK OOK RF wireless module?

A: Common applications include wireless remote controls, home automation systems, IoT sensor nodes, keyless entry systems, wireless data loggers, and any project requiring short-to-medium-range low-power RF communication between two microcontroller-based devices.

Q: How small is the PCB for this RF module?

A: The PCB measures just 15mm × 11.8mm in an SMD package, making it one of the most compact 433MHz RF solutions available — ideal for embedding directly into finished product enclosures or tightly packed custom PCB designs.
