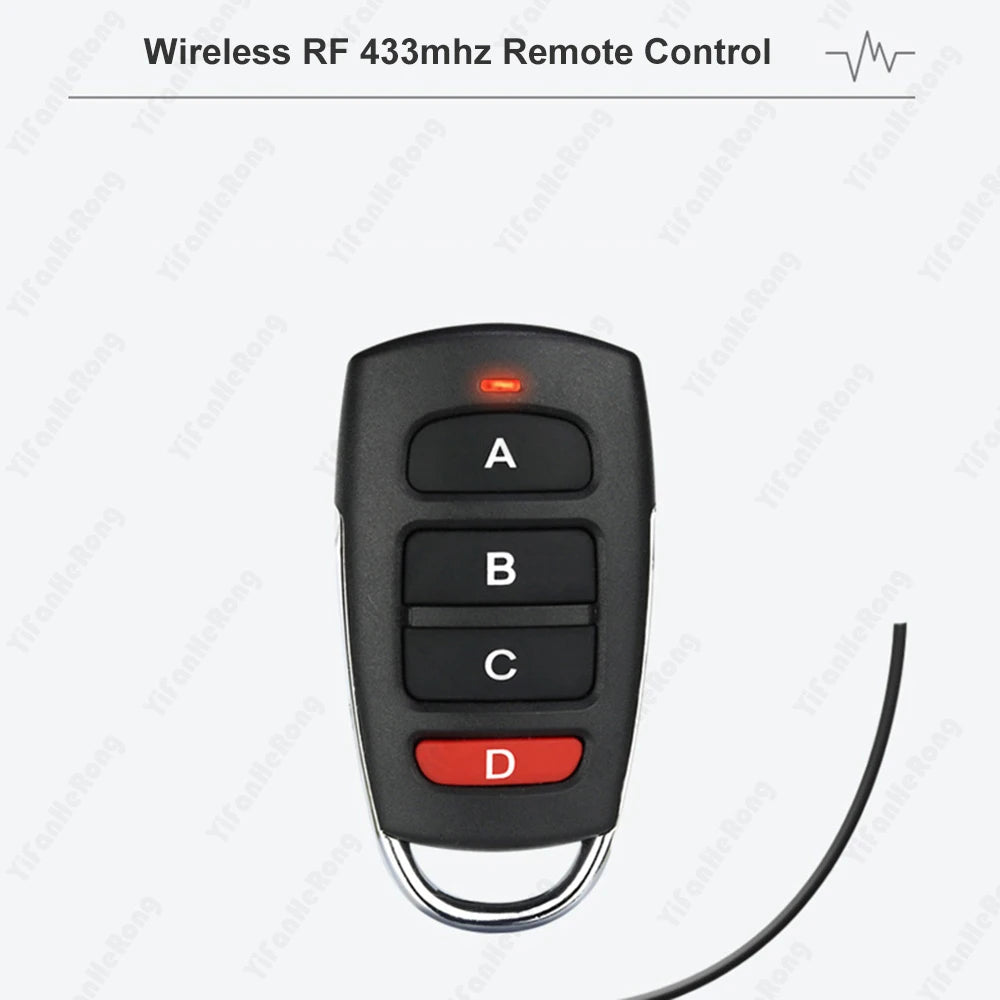

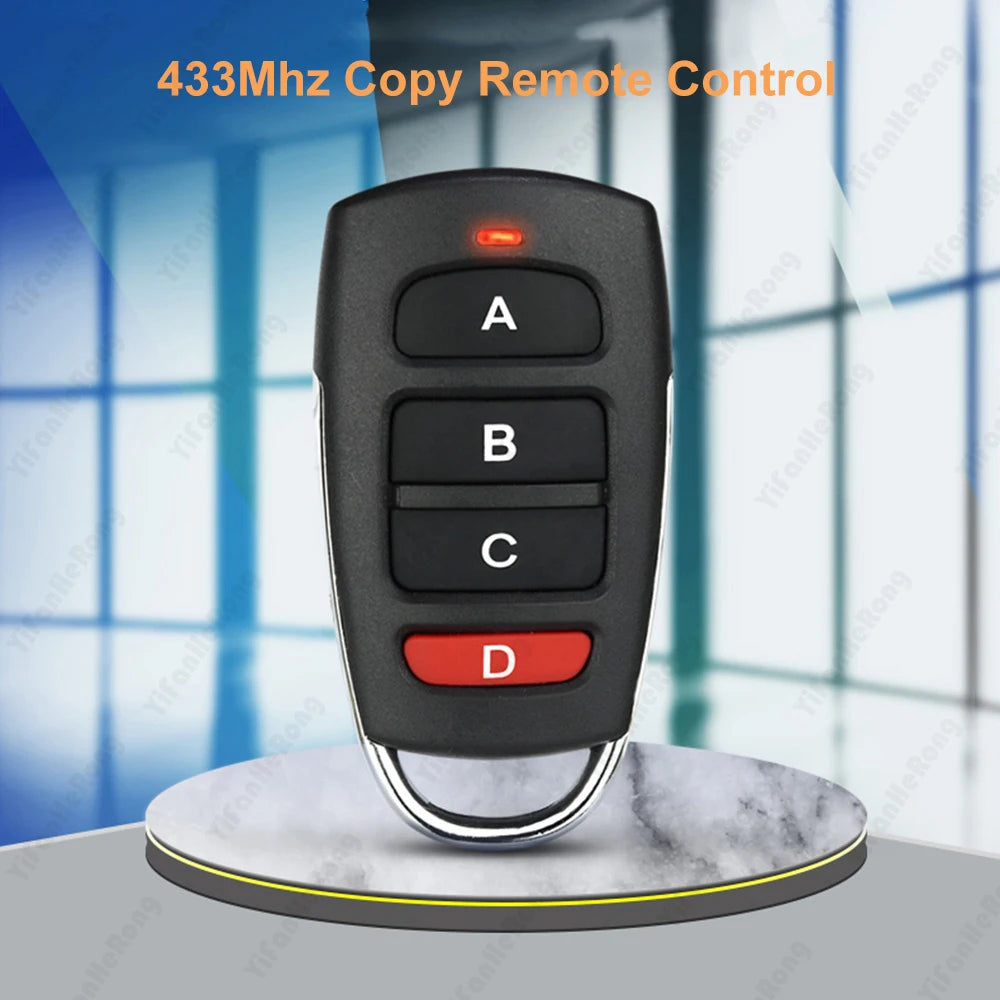

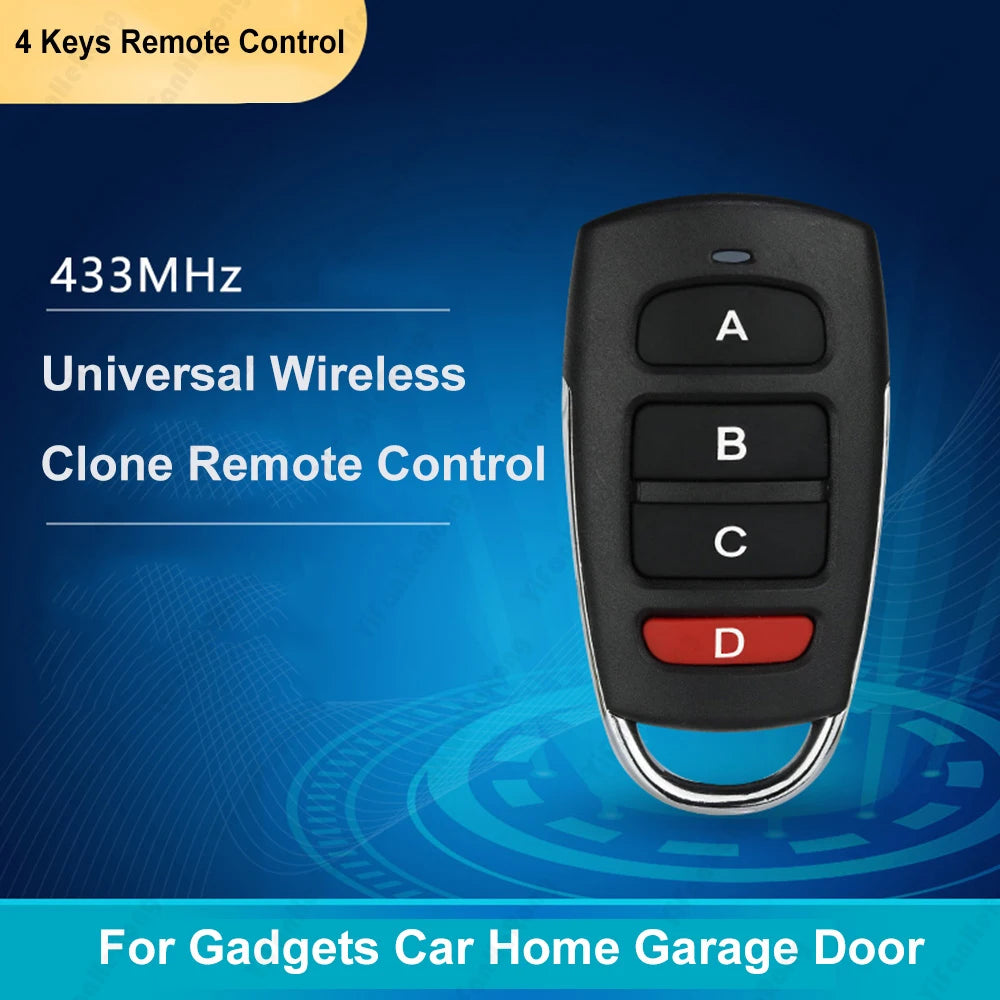

433MHz 4-Button Copy Duplicator Remote for Garage & Gate

433MHz 4-Button Smart Copy Duplicator Remote Control

Never get locked out again! This 433.92MHz 4-Button Cloning Remote Control lets you quickly duplicate your existing wireless remote transmitter so you always have a reliable backup on hand. Compatible with rolling doors, retractable doors, road barriers, garage doors, electronic gates, vehicle central locking, car alarms, and home automation devices — all at the press of a button.

Before You Buy — Important Compatibility Check

To ensure this remote works with your system, please confirm all three of the following:

1. You have a fully functioning original remote control to copy from.
2. Your current remote operates at 433.92MHz.
3. Your current remote uses one of the compatible IC chips listed below.

If your door uses a reverse/rolling code system, please contact our customer service before purchasing to confirm compatibility.

Compatible IC Chips

PT2260, SC2260, HS2260, LX2260, HX2260, PT2262, SC2262, LX2262, HS2262, HX2262, PT2264, PT2240, LX2240, LX2241, SCL2240, CS5211, EV1527, HS1527, HX1527, SC1527, GP1527, CP1527, AD1527, SCL1527, TL1527, ZX1527, SMC918, AX5026, SMC926, AX5326-3, AX5326-4, FP527, HT600, HT680, HT6207, HT6010, HT6012, HT6013, HT6014, HT12D, HT46F49E, PIC16F630, ULN2003, and more.

Key Features

• One-press cloning: Quickly copies your existing remote's signal with no tools or technical knowledge required
• 4 programmable buttons: Copy up to 4 individual commands from your original remote
• 50-metre transmission range in open environments
• Wide temperature tolerance: Operates from -20°C to 70°C
• Battery included: Ready to use straight out of the box
• Compact & lightweight: Easy to carry on a keychain or store in a vehicle

Supported Applications

• Garage & rolling doors
• Retractable & sliding gates
• Road barrier arms
• Vehicle central locking systems
• Car & motorbike alarms
• Car sunroofs
• Home automation lights & appliances

Technical Specifications

How to Copy Your Remote

Step 1 — Clear Existing Data

Simultaneously press and hold the UP and DOWN (or LOCK/UNLOCK) buttons until the LED indicator flashes rapidly. Release the buttons — all stored data is now cleared. No buttons will light the LED until new data is copied.

Step 2 — Copy Each Button

Hold the original remote and the new copy remote as close together as possible (ideally back-to-back for remotes with lower transmit power). Press the button on the original remote that you wish to copy, then press the corresponding button on the new remote. The LED will flash quickly to confirm a successful copy. Repeat for each button. If a copy does not work correctly, clear the data and repeat the process in an area free from wireless interference.

What's in the Box

• 1 × 433.92MHz 4-Button Cloning Remote Control (battery included)

Note: Supplied without retail packaging, but securely packed for safe shipping.

You May Also Like

• Natural Stone Round Beads 2mm 3mm – Tiger Eye, Labradorite, Agate
• Round Aluminum Wire 1mm–3mm | DIY Jewelry Making Wire

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: What frequency does this 4-button copy duplicator remote control support?

A: This remote control operates exclusively at 433.92MHz. It does not support 315MHz or other frequencies. Always open your existing remote and confirm the frequency printed on the circuit board before purchasing.

Q: How do I know if my IC chip is compatible with this cloning remote?

A: Open your current remote and locate the IC chip number. Compatible chips include the EV1527, PT2262, PT2260, HT12D, HT6207, CS5211, and many others listed above. If your chip number is on the compatible list and your frequency is 433.92MHz, this remote will work for you.

Q: Can this remote work with rolling-code (hopping-code) garage door systems?

A: No — this duplicator is designed for fixed-code systems only. Rolling-code (hopping-code) systems generate a new code with every press and cannot be duplicated with this device. If you are unsure, please check your system or contact our customer support before purchasing.

Q: What types of doors and gates is this remote compatible with?

A: This remote is suitable for rolling doors, retractable doors, road barrier gates, garage doors, electronic gates, vehicle central locking, car and motorbike alarm systems, car sunroofs, and home automation lighting — provided they use a supported fixed-code IC chip at 433.92MHz.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
