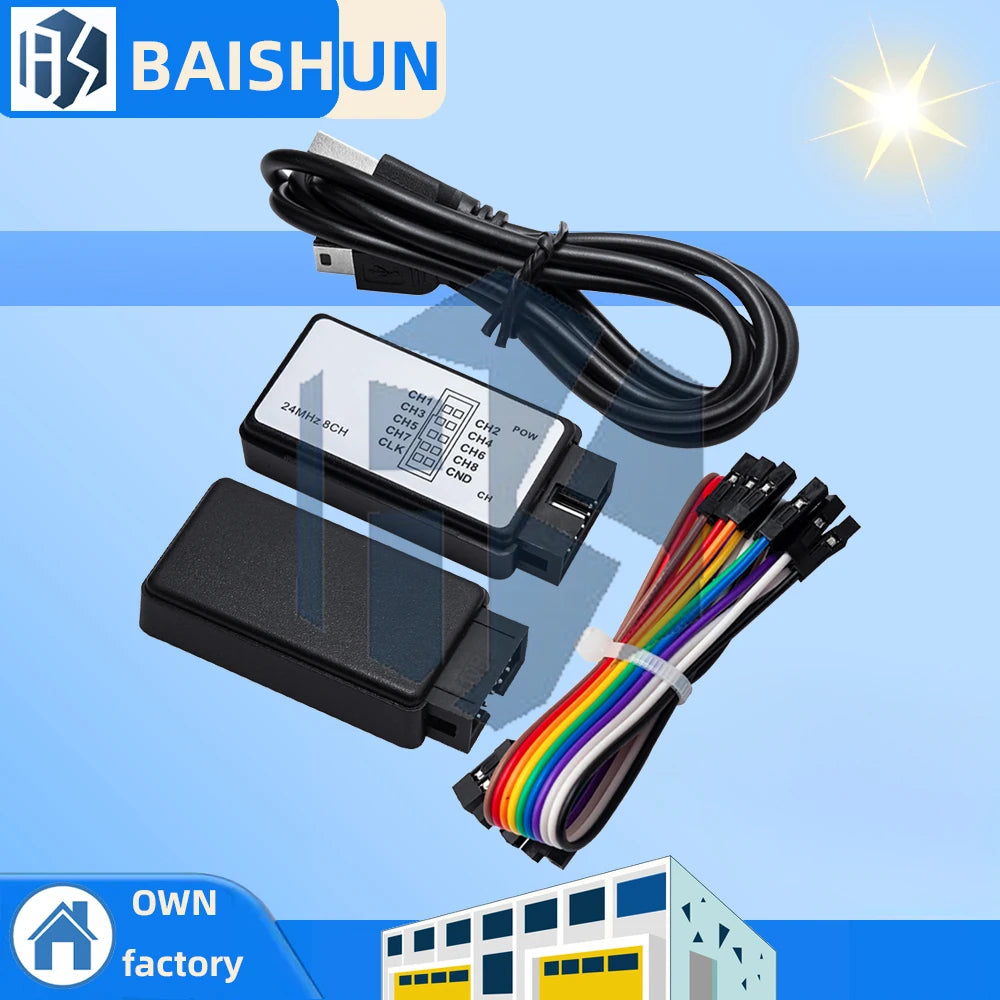

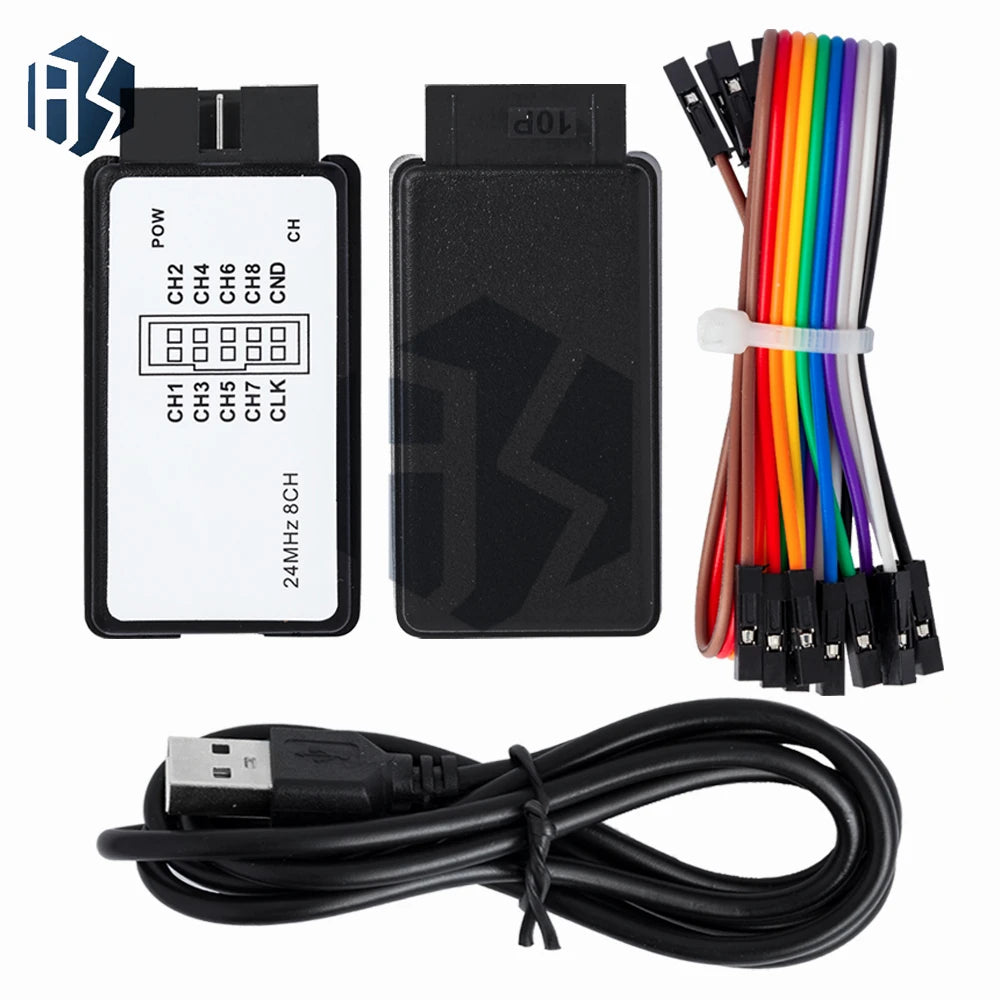

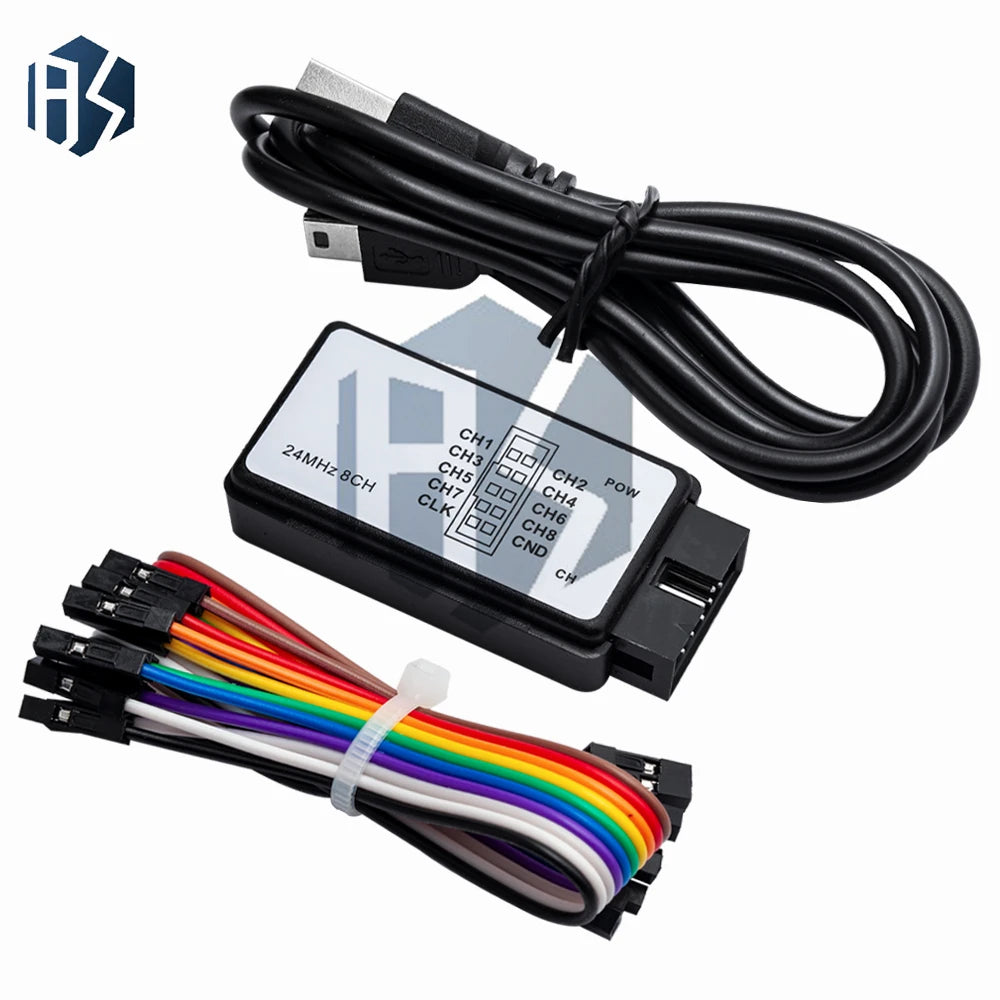

24MHz 8-Channel USB Logic Debugger for ARM & FPGA Development

Take your embedded systems and digital hardware projects to the next level with this high-speed 24MHz 8-Channel USB Logic Debugger. Engineered for engineers, hobbyists, and students working with ARM microcontrollers and FPGA platforms, this compact USB debugging tool captures and analyzes digital signals at up to 24 million samples per second — giving you precise, real-time visibility into your circuit's behavior.

Key Features

24MHz Sampling Speed: Capture fast digital signals with up to 24M samples per second for accurate waveform analysis.
8 Independent Channels: Monitor up to 8 digital signal lines simultaneously, ideal for parallel bus debugging and protocol analysis.
USB Plug-and-Play: Connects instantly to your PC via USB — no external power supply needed. Compatible with Windows, Linux, and macOS environments.
ARM & FPGA Compatible: Works seamlessly with ARM Cortex-based microcontrollers, FPGA development boards, and a wide range of embedded platforms.
Protocol Decoding Support: Decode common protocols including I²C, SPI, UART, 1-Wire, and more, making it a versatile tool for debugging digital communication interfaces.
Compact & Portable Design: Lightweight form factor fits easily into your toolkit or workbench setup without taking up unnecessary space.
Open-Source Software Compatible: Works with popular open-source logic analyzer software such as PulseView / sigrok for a rich analysis experience.

Who Is This For?

Whether you're an embedded systems developer validating firmware, an FPGA designer verifying logic outputs, or an electronics student learning digital protocols, this 8-channel USB debugger is an essential instrument for any digital electronics workbench. Its ease of use and broad compatibility make it a go-to tool for both beginners and seasoned professionals.

Specifications

Sampling Rate: Up to 24MHz (24M samples/sec)
Channels: 8
Interface: USB
Compatibility: ARM, FPGA, AVR, PIC, and other digital platforms
Supported Protocols: I²C, SPI, UART, 1-Wire, and more
Software: Compatible with PulseView / sigrok (open source)
Power Supply: USB Bus-Powered

Related Products You May Like

Complete your electronics toolkit with these related items from our store:

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What is a 24MHz 8-Channel USB Logic Debugger and what is it used for?

A: A 24MHz 8-Channel USB Logic Debugger is a digital test instrument that connects to your computer via USB and captures digital signals from electronic circuits at speeds of up to 24 million samples per second across 8 simultaneous channels. It is used by embedded developers, FPGA designers, and electronics engineers to analyze digital waveforms, decode communication protocols (such as I²C, SPI, and UART), and verify the correct behavior of microcontroller and FPGA-based systems.

Q: Is this USB logic debugger compatible with ARM and FPGA development boards?

A: Yes — this debugger is specifically designed to work with ARM Cortex-based microcontrollers and FPGA development platforms. It is also broadly compatible with AVR, PIC, and most other digital embedded systems, making it a versatile instrument for a wide range of development projects.

Q: What software do I need to use this 8-channel USB logic debugger?

A: This logic debugger is compatible with PulseView (part of the open-source sigrok project), which is free to download and available for Windows, Linux, and macOS. The software provides a user-friendly interface for waveform visualization and protocol decoding, so you can get started quickly without any additional cost.

Q: How many channels can I monitor at once, and is 24MHz fast enough for most projects?

A: You can monitor up to 8 digital signal lines simultaneously, which is sufficient for most standard parallel bus and serial protocol debugging tasks. A 24MHz sampling rate is well-suited for analyzing signals operating at typical embedded system speeds, covering the vast majority of UART, SPI, and I²C communication scenarios encountered in everyday development work.
