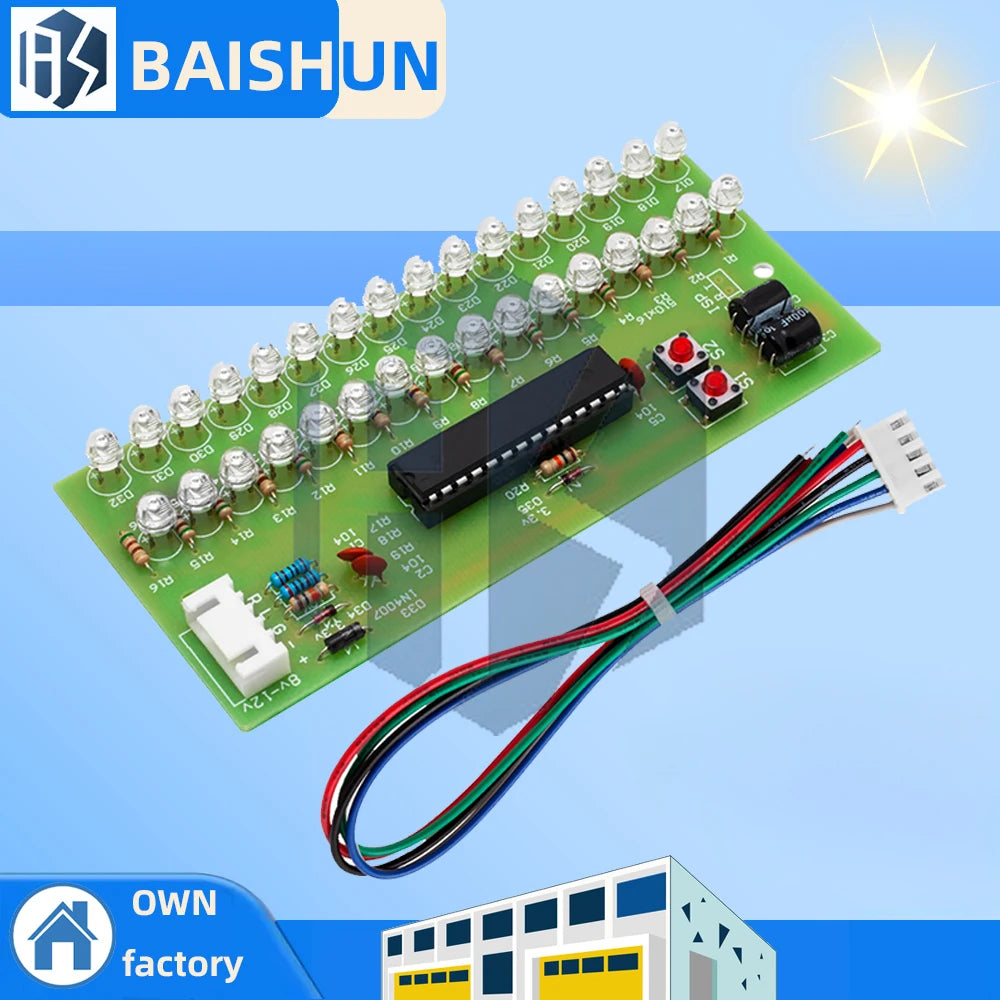

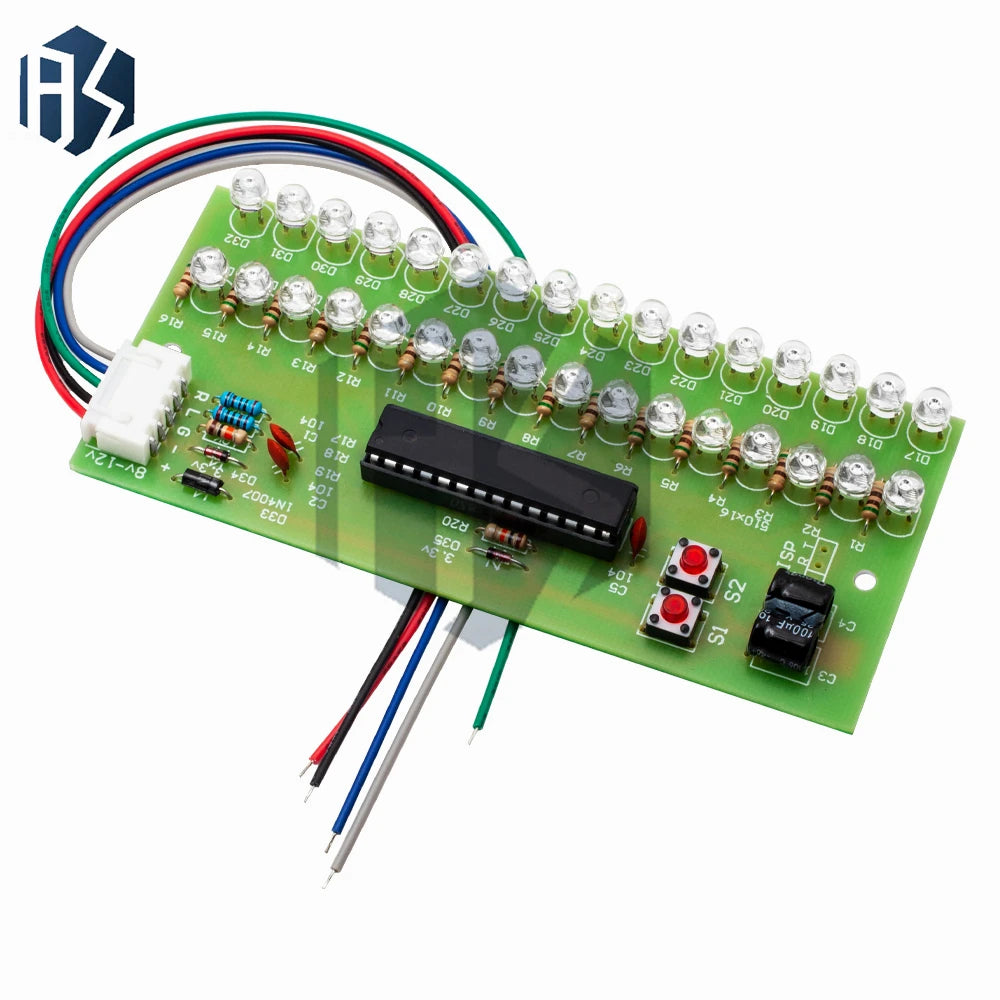

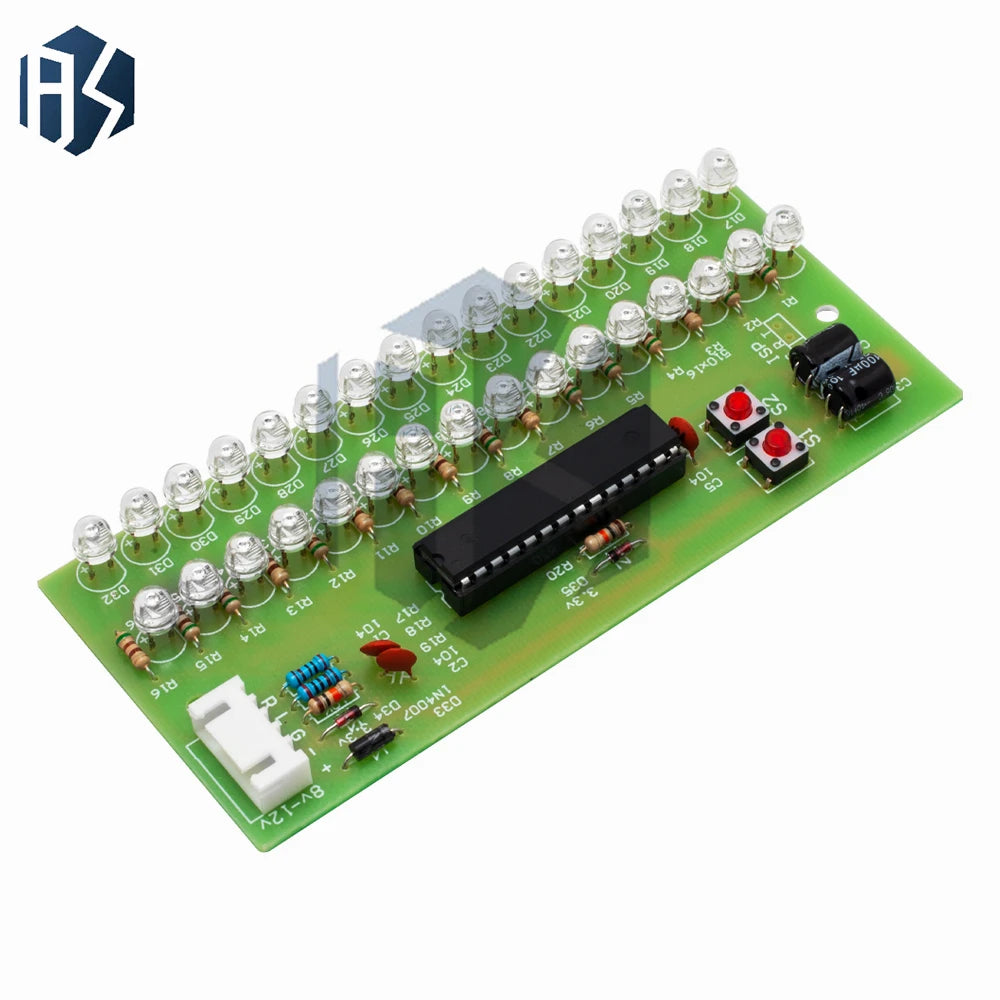

16-Segment MCU-Controlled Dual-Channel VU Meter LED Audio Level Indicator

Take your audio setup to the next level with this 16-Segment MCU-Controlled Dual-Channel VU Meter LED Audio Level Indicator. Whether you're building a custom amplifier, hi-fi stereo system, or a retro-styled audio rack, this compact board delivers real-time, visually striking volume unit feedback across two independent channels — all managed by an onboard microcontroller for precise, stable readings.

With its bright LED display and adjustable sensitivity, this VU meter is as functional as it is eye-catching. It's a favourite among electronics enthusiasts, hobbyists, and DIY audio builders who want a professional-grade audio indicator without the complexity.

Key Features

16-Segment Display: Smooth, high-resolution level metering across 16 bright LED segments per channel for accurate audio visualization.
Dual-Channel Output: Independent left and right channel metering for stereo audio systems.
MCU-Controlled: Onboard microcontroller ensures stable, responsive, and precise signal tracking.
Adjustable Sensitivity: Fine-tune the response to match your audio source and system output level.
Green LED Backlight: Classic, vibrant green illumination for clear visibility — also available in four-color option.
Compact SMD Package: Space-saving surface-mount design ideal for integration into custom enclosures and DIY builds.
Wide Operating Temperature: Reliable performance from -40°C to +85°C, suitable for various environments.
Customizable Quantity: Available in single (1 pc), 5-pack, or 10-pack options to suit your project scale.

Specifications

Type: VU Meter / LED Audio Level Indicator
Channels: Dual (Left + Right)
Segments per Channel: 16
Supply Voltage: 8V – 12V DC
Maximum Current: Approximately 70mA
Operating Temperature: -40°C to +85°C
Package Type: SMD
Application: Computer, Hi-Fi Audio, Amplifier, DIY Electronics
Color Options: Green / Four Colors
Condition: New

Perfect For

DIY amplifier and hi-fi audio builds
Custom audio rack panels and enclosures
Electronics hobbyists and makers
Retro-inspired audio equipment projects
Computer audio monitoring setups

Related Products You May Like

Looking to complement your DIY electronics projects? Check out our Round Aluminum Wire 1mm–3mm | DIY Jewelry Making Wire for craft and prototyping wire needs, or explore our Glow in the Dark Natural Stone Round Beads | DIY Jewelry Making for unique decorative components.

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What is a 16-Segment MCU-Controlled Dual-Channel VU Meter LED Audio Indicator?

A: It is a compact electronic module featuring two independent LED bar-graph displays, each with 16 segments, that visually represent the volume or signal level of a stereo audio source in real time. An onboard microcontroller (MCU) manages signal processing and display updates for accurate and responsive metering.

Q: What voltage does this dual-channel VU meter LED indicator require?

A: This VU meter operates on a supply voltage of 8V to 12V DC and draws a maximum current of approximately 70mA, making it compatible with most standard benchtop power supplies and DIY audio power rails.

Q: Can I adjust the sensitivity of the LED audio level indicator?

A: Yes. The module features adjustable sensitivity, allowing you to calibrate the display response to match your specific audio source output level — whether from a preamplifier, mixer, computer sound card, or other line-level signal.

Q: Is this VU meter suitable for a DIY amplifier or hi-fi audio build?

A: Absolutely. Its compact SMD design, wide operating temperature range (-40°C to +85°C), and dual-channel layout make it an excellent choice for custom amplifiers, hi-fi stereo systems, audio rack panels, and other DIY electronics projects.

Q: What quantity options are available for this LED VU meter?

A: You can order a single unit (1 pc), a 5-pack, or a 10-pack to suit your project requirements, whether you are prototyping or building multiple units at once.
