12V 24V Dual MOSFET Programmable Timer Delay Cycle Relay Module

12V/24V Dual MOSFET Programmable Timer Delay Cycle Module

Take full control of your DIY electronics projects with this versatile Dual MOSFET Delay Cycle Timer Relay Module. Compatible with both 12V and 24V systems, this programmable relay board lets you set precise on/off timing cycles for automation, switching, and control applications. Whether you're building a custom irrigation controller, LED lighting timer, motor driver, or any other timed switching circuit, this compact module delivers reliable performance in a small footprint.

Key Features

• Wide Voltage Compatibility: Works with 12V and 24V DC power supplies — ideal for automotive, solar, and general electronics projects.
• Dual MOSFET Output: High-efficiency MOSFET switching handles resistive and inductive loads with minimal heat generation.
• Fully Programmable: Set custom delay-on, delay-off, and repeat cycle timing to match your exact project requirements.
• SMD Construction: Surface-mount components deliver compact size and improved reliability over through-hole alternatives.

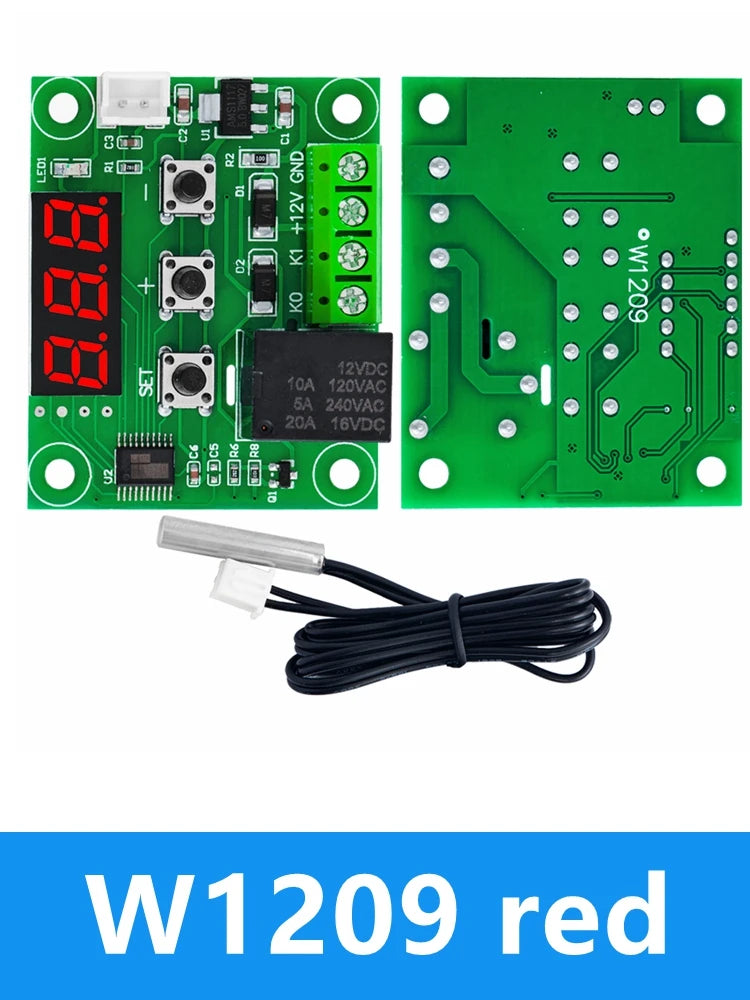

• Multiple Case Options: Choose from four variants — W1209 Red (bare board), W1209 with case, Plastic White Case, or Plastic Black Case.
• DIY-Ready: Clear terminal connections make wiring straightforward for hobbyists and experienced electronics makers alike.
• Durable Design: Built to withstand continuous cycling in both indoor and enclosed outdoor enclosures.

Specifications

• Input Voltage: DC 12V / 24V
• Output Type: Dual MOSFET switching
• Components: SMD (Surface Mount Device)
• Case Options: W1209 Red (board only), W1209 with case, Plastic White Case, Plastic Black Case
• Applications: Automation timers, relay switching, motor control, LED cycling, irrigation systems, and more

What's Included

• 1 × Dual MOSFET Delay Cycle Timer Relay Module (in your chosen configuration)

Perfect For

• Electronics hobbyists and makers building automation circuits
• DIY home automation and smart switching projects
• Replacing faulty timer boards in existing devices
• Solar panel battery management timing circuits
• Automotive accessory timing and control
