12864 LCD Dot Matrix Serial SPI Module – Arduino Compatible

Take your electronics projects to the next level with the 12864 LCD Dot Matrix Serial SPI Module (LCD12864-03A). Designed for full compatibility with Arduino and other popular microcontroller platforms, this compact display module delivers crisp 128×64 pixel resolution, making it ideal for displaying graphics, custom characters, menus, and sensor data in your DIY builds.

Key Features

128×64 Dot Matrix Display: High-resolution monochrome screen capable of rendering both text and graphics with sharp clarity.
Serial SPI Interface: Streamlined serial communication reduces the number of pins required, keeping your wiring clean and simple.
Arduino Compatible: Works seamlessly with Arduino Uno, Nano, Mega, and most other common microcontroller boards.

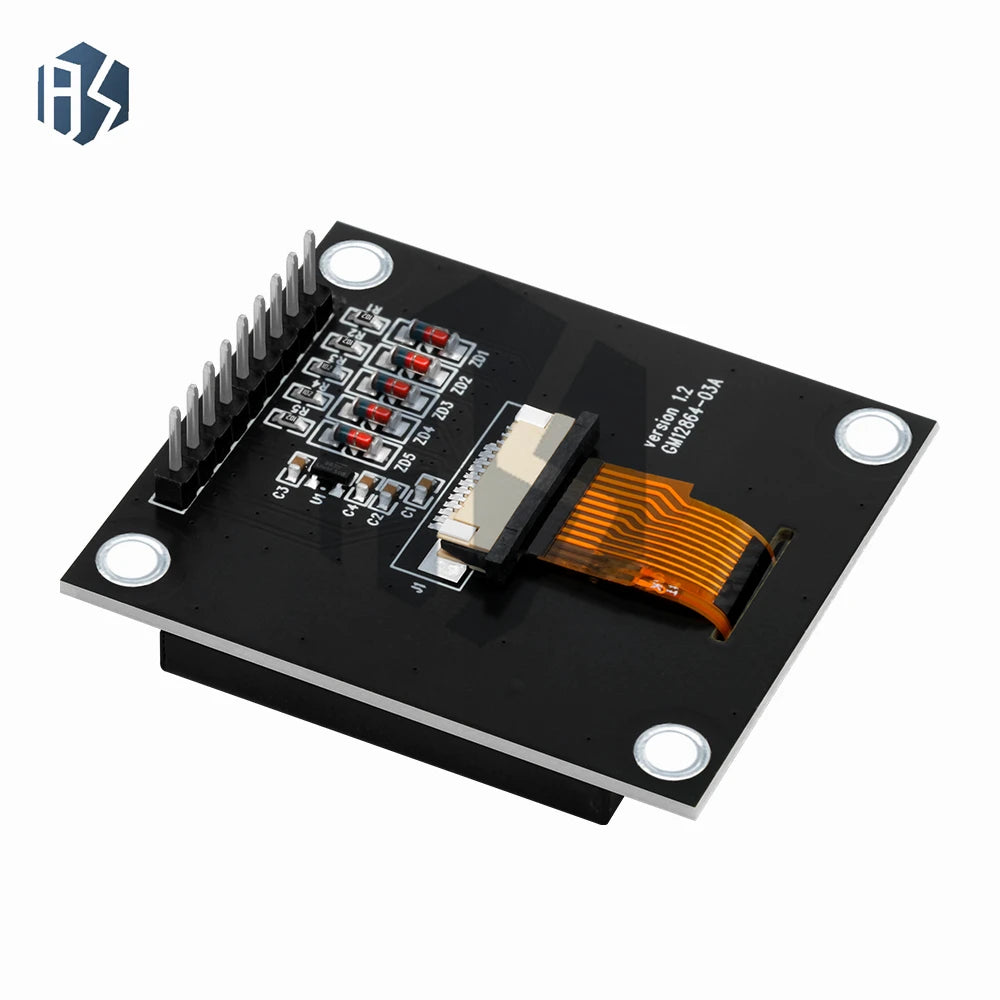

Sturdy Iron Frame: A durable iron frame provides structural support and makes mounting in enclosures straightforward.

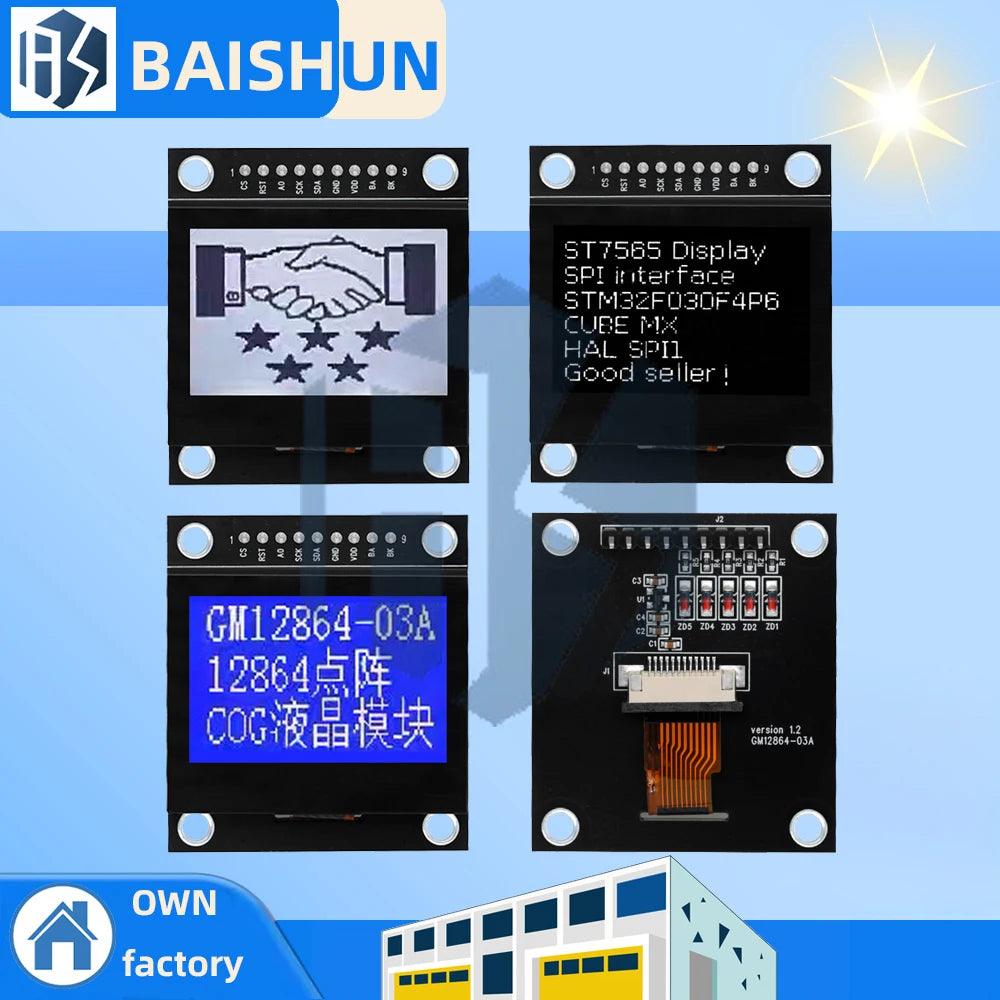

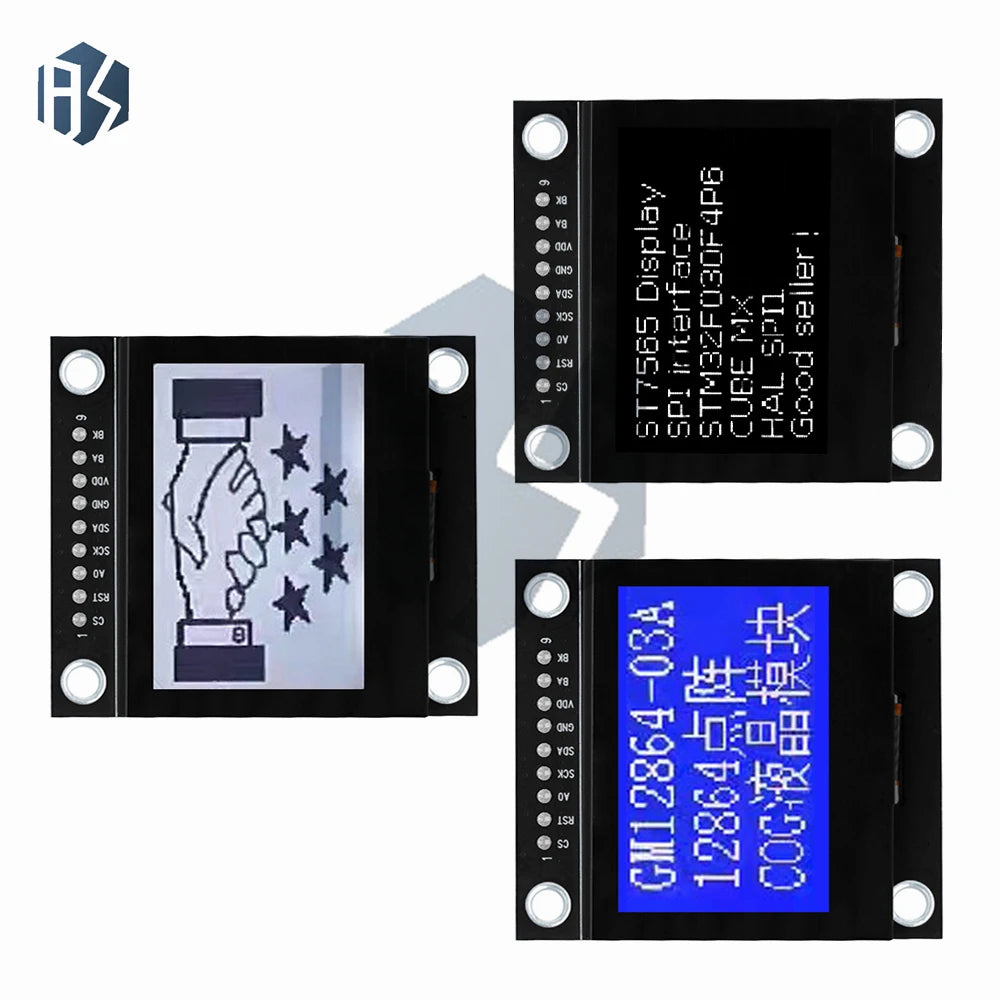

Two Color Options: Available in Black and Blue backlight versions to suit your project's aesthetic.
Wide Application Range: Perfect for embedded systems, robotics, home automation displays, DIY instruments, and electronics prototyping.
Compact & Lightweight: Easy to integrate into space-constrained project enclosures and breadboard setups.

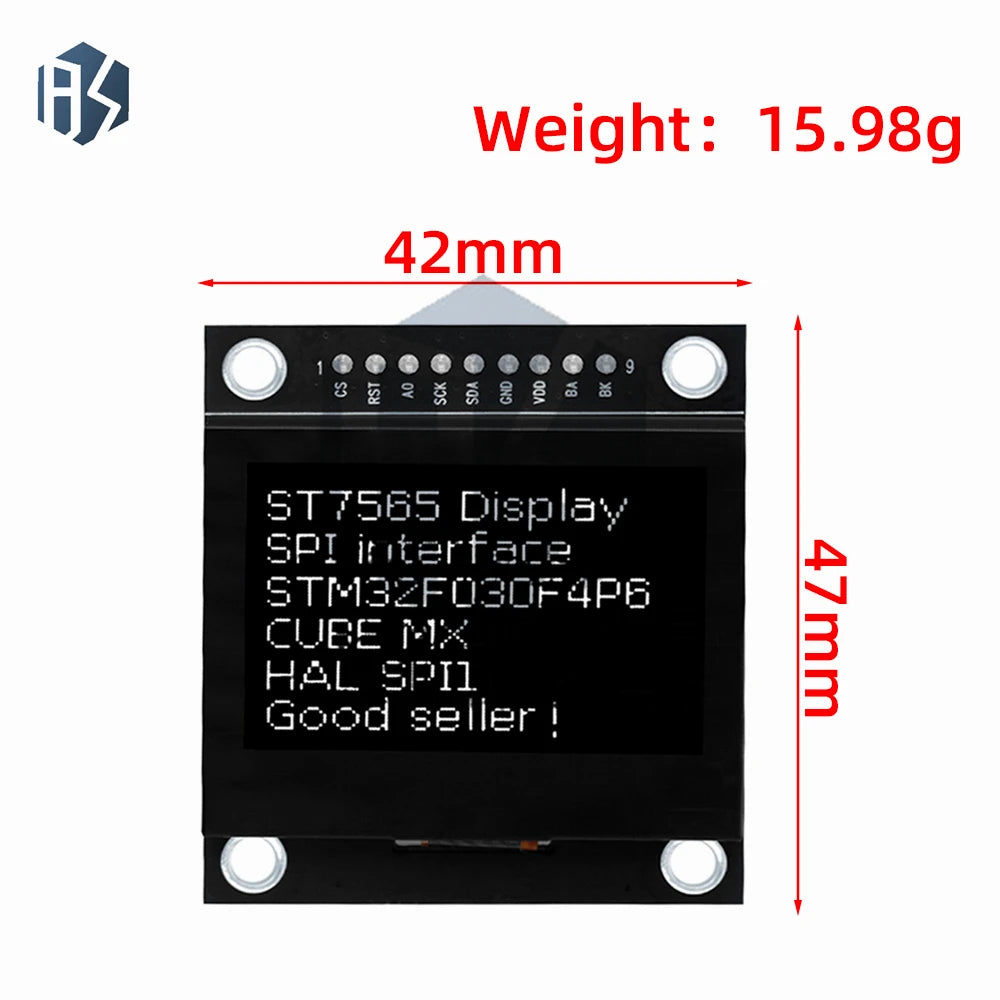

Specifications

Display Type: LCD Dot Matrix
Resolution: 128 × 64 pixels
Interface: Serial SPI
Frame Material: Iron
Color Options: Black, Blue
Compatibility: Arduino and common microcontroller platforms
Model: LCD12864-03A

Who Is This Module For?

Whether you're a hobbyist building your first Arduino project, a maker crafting a custom instrument panel, or an engineer prototyping an embedded display interface, the LCD12864-03A delivers reliable performance at an accessible price point. Its SPI serial interface keeps wiring minimal, and the dot matrix format gives you the freedom to display everything from simple text readouts to custom icons and small graphics.

Related Products You May Like

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: What is the 12864 LCD Dot Matrix Serial SPI Module and what does it do?

A: The 12864 LCD Dot Matrix Serial SPI Module (LCD12864-03A) is a compact monochrome display screen with a 128×64 pixel resolution. It connects to Arduino and other microcontrollers via a serial SPI interface, allowing you to show text, numbers, custom graphics, and menus on your DIY electronics projects.

Q: Is this LCD module compatible with Arduino boards?

A: Yes! The LCD12864-03A is fully compatible with popular Arduino boards including the Uno, Nano, and Mega. It communicates via SPI serial protocol, which minimizes the number of pins required and is supported by widely available Arduino libraries, making setup quick and straightforward.

Q: What color options are available for this LCD module?

A: The module is available in two backlight color variants — Black and Blue — so you can choose the one that best fits the look and feel of your project or enclosure design.

Q: What kind of projects can I build with the 12864 LCD Dot Matrix module?

A: This versatile display is great for a wide range of applications including home automation dashboards, robotics interfaces, DIY weather stations, custom instrument panels, handheld game devices, sensor data monitors, and any embedded systems project that needs a compact graphical display.
