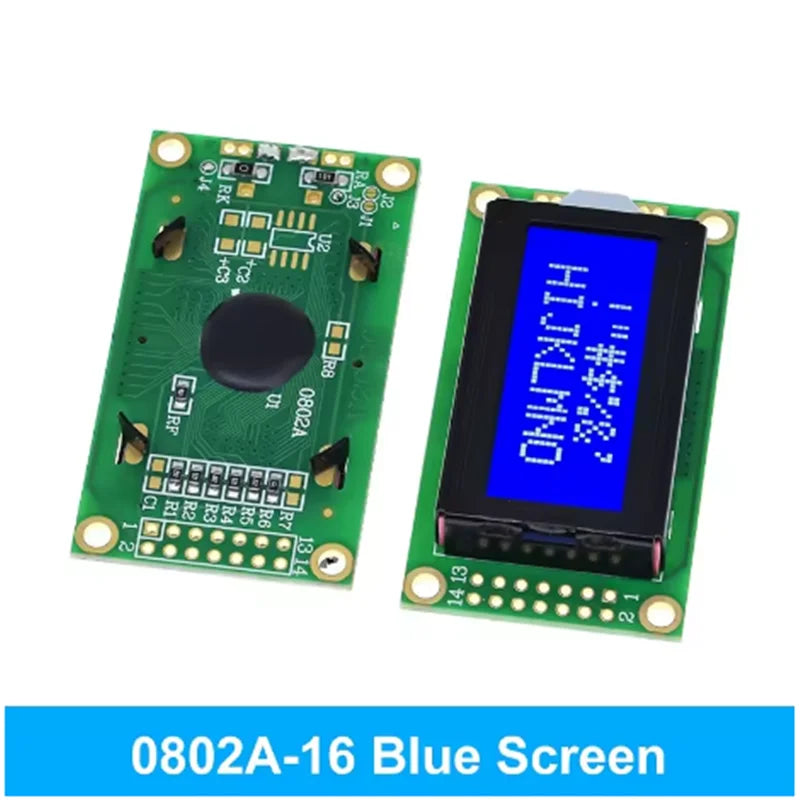

0802A LCD Character Display Module – Blue Backlight

The 0802A LCD Character Display Module is a compact, versatile 8-character × 2-row LCD screen designed for electronics projects, Arduino builds, microcontroller setups, and DIY prototyping. With its striking blue backlight and white characters, it delivers excellent readability in a tiny 58 × 32 mm footprint — perfect for embedding into custom enclosures, control panels, or maker projects.

Key Features

Display Layout: 8 characters × 2 rows for clean, compact text output
Blue Backlight: High-contrast blue backlight with white character display for easy reading
Compact Dimensions: 58 × 32 mm — ideal for space-constrained builds
Standard HD44780 Controller: Compatible with Arduino, Raspberry Pi, PIC, AVR, and most common microcontrollers
2 Color Options: Available in blue and other variants to suit your project aesthetic
Easy Integration: Standard 16-pin header interface for straightforward wiring and setup
Low Power Consumption: Efficient operation suitable for battery-powered projects
Wide Application: Suitable for clocks, meters, sensor readouts, status displays, and DIY gadgets

Specifications

Model: 0802A
Display Type: Character LCD
Configuration: 8 columns × 2 rows
Backlight Color: Blue

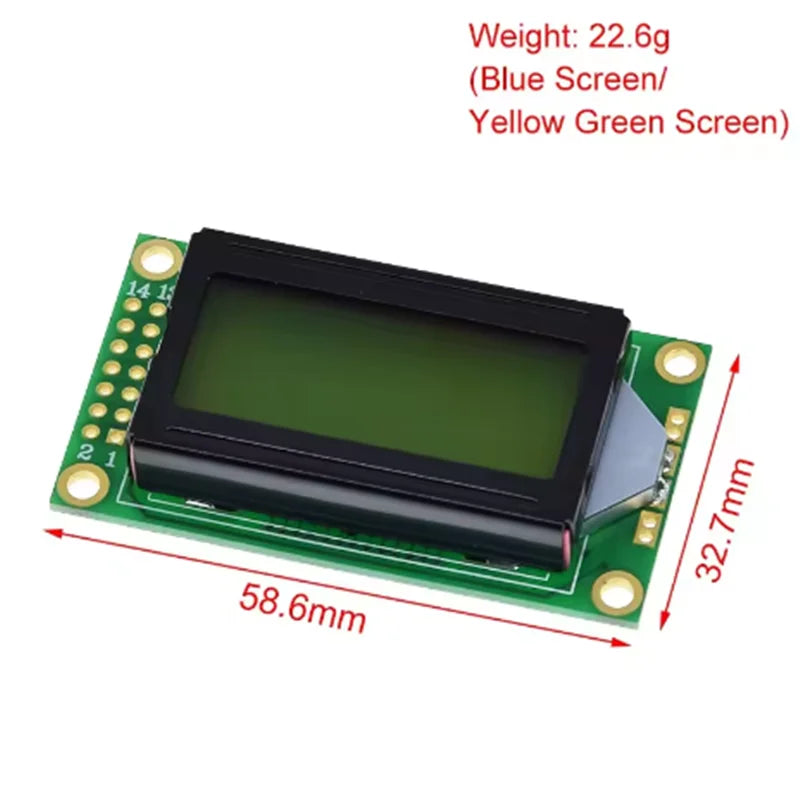

Module Dimensions: 58 × 32 mm
Interface: 16-pin parallel (HD44780 compatible)
Operating Voltage: 5V DC

Why Choose the 0802A LCD Module?

Whether you're a hobbyist building your first Arduino project or an experienced maker adding a display to a custom device, the 0802A delivers reliable performance in a space-saving form factor. The blue backlit screen stands out with clarity, making it a go-to component for any project that requires a simple, readable text output.

Great Pairings for Your Build

Looking to expand your electronics toolkit? Check out these related components from our store:

Round Aluminum Wire 1mm–3mm | DIY Jewelry Making Wire — great for custom enclosure wiring and lightweight structural use
Glow in the Dark Natural Stone Round Beads | DIY Jewelry Making — add a creative decorative touch to maker projects
4/6mm CCB Flat Round Spacer Beads DIY Jewelry Making 100-200pcs — versatile craft components for mixed-media builds

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What microcontrollers are compatible with the 0802A LCD Character Display Module?

A: The 0802A LCD module uses the standard HD44780 parallel interface, making it compatible with a wide range of microcontrollers including Arduino (Uno, Nano, Mega), Raspberry Pi (via I2C adapter), PIC, AVR, STM32, and most other common platforms. Standard LiquidCrystal library support makes setup quick and straightforward.

Q: What does "8×2" mean on this LCD display module?

A: "8×2" means the display shows 8 characters per row across 2 rows, giving you a total of 16 character positions on screen. This makes it ideal for compact devices where you need to display short status messages, numeric readouts, or labels without requiring a large screen footprint.

Q: What voltage does the 0802A LCD module operate at?

A: The 0802A LCD character display module operates at 5V DC, which is the standard logic voltage for most Arduino and microcontroller projects. Always ensure your power supply matches the module's requirements for stable operation.

Q: How do I connect the 0802A LCD module to an Arduino?

A: The module features a standard 16-pin header. Connect the data and enable pins to your Arduino's digital I/O pins, wire the power (VCC/GND) to 5V and GND, and use a potentiometer on the contrast pin (VO) to adjust display clarity. The Arduino LiquidCrystal library handles the rest with just a few lines of code.
